目录

数据库一阶段学习

# 1、考试介绍

数据库的考点一般在51~56题

# 2、结构数据模型

# 2.1、层次模型

# 2.2、网状模型

# 2.3、关系模型

关系模型式一种二维表格结构来实现实体以及实体之间联系的数据模型。

# 2.4、例题

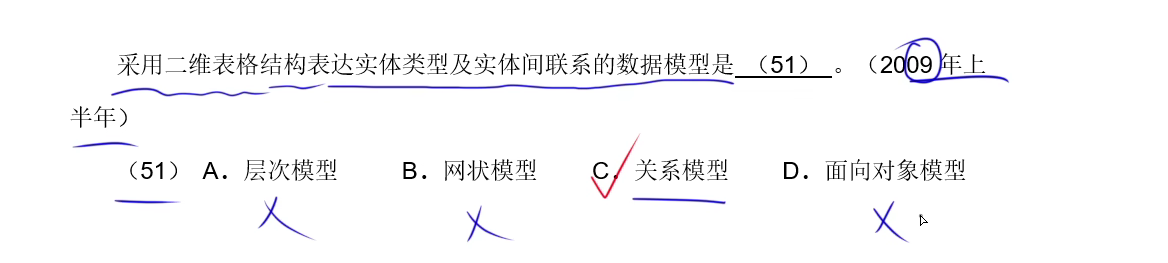

image-20241015151314512

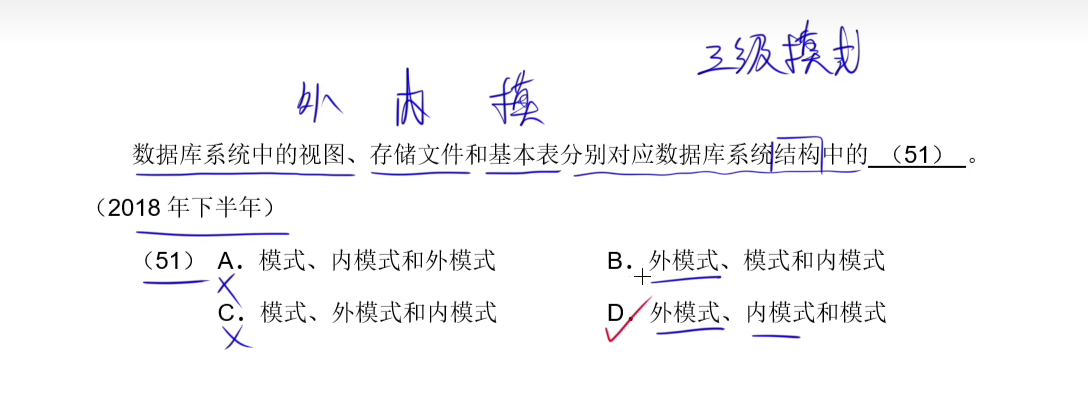

# 3、数据库的三级模式结构

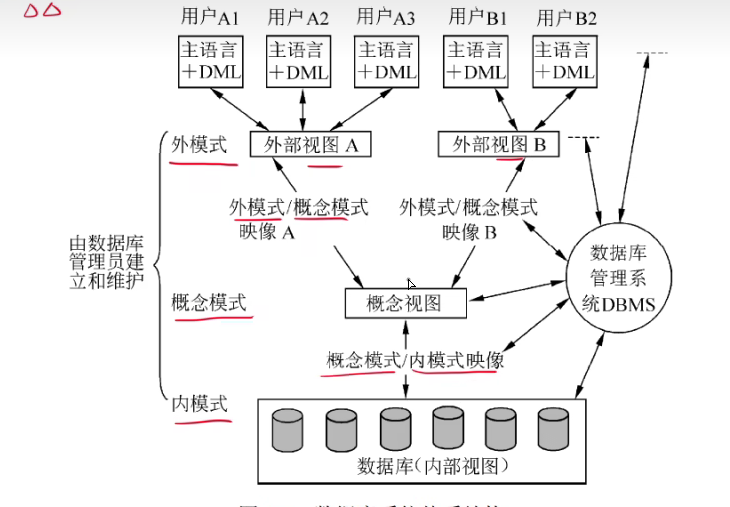

三级模式

image-20241015151542380

  • 外模式(视图)
  • 模式(基本表)
  • 内模式(数据库存储文件)

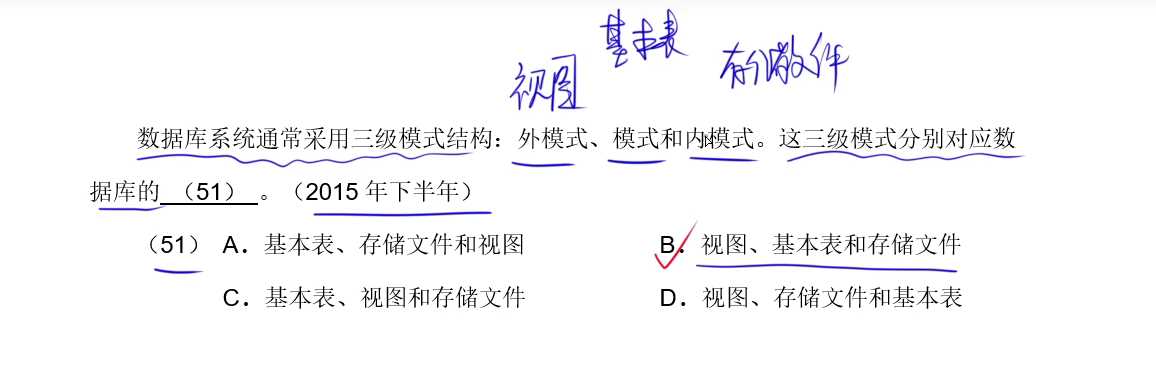

image-20241015151832810

image-20241015151906418

# 4、两级映像

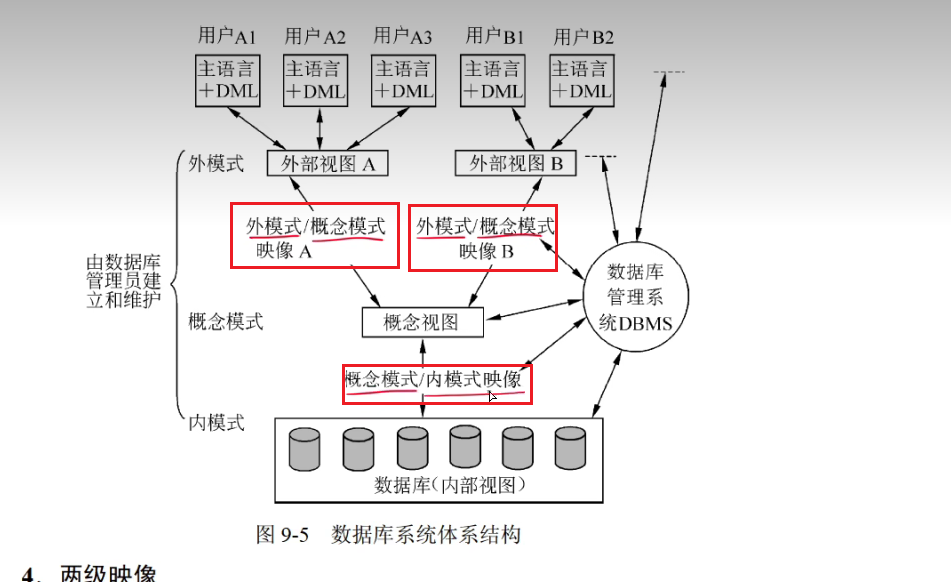

image-20241015152017516

  • 数据的物理独立性:概念模式和内模式之间的映像
  • 数据的逻辑独立性:外模式和概念模式之间的映像

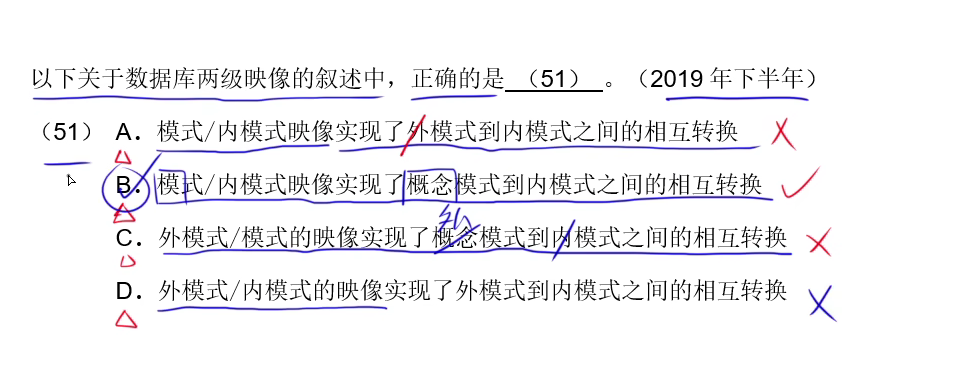

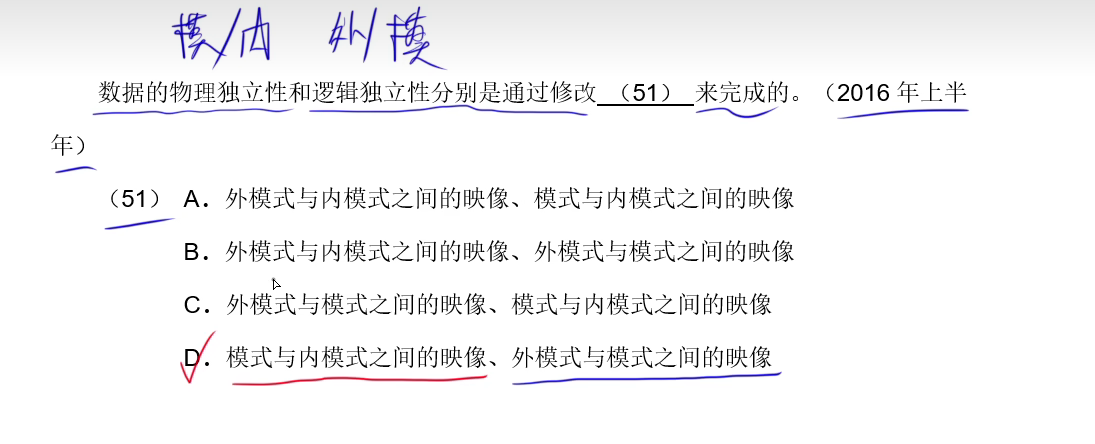

# 4.1、例题

image-20241015152538542

image-20241015152627549

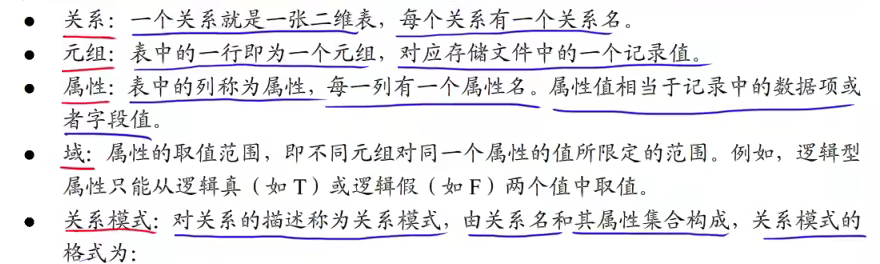

# 5、关系模型种的基本术语

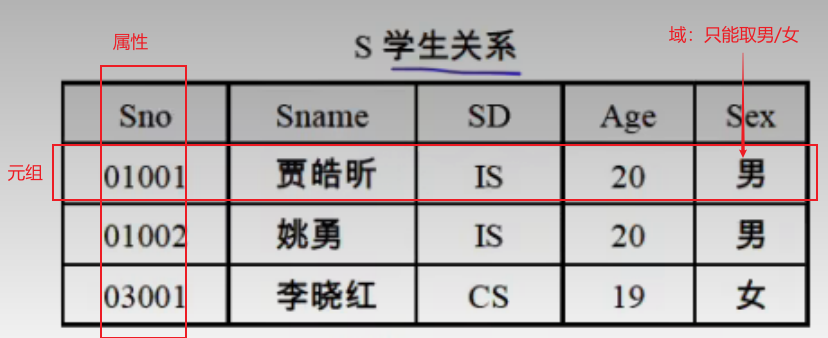

下图的关系模式为S(Sno,Sname,SD,Sage,Sex)

image-20241015152955536

image-20241015153108831

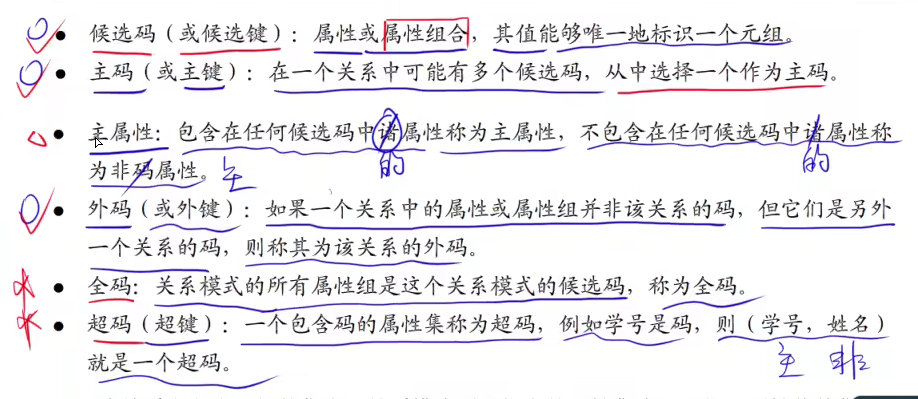

image-20241015155148192

# 6、关系模型的定义

  • 关系模型中数据的逻辑关系式一张二维表
  • 关系模型操作又:选中、投影、链接、除、并、交、差等查询操作和增加、删除操作等

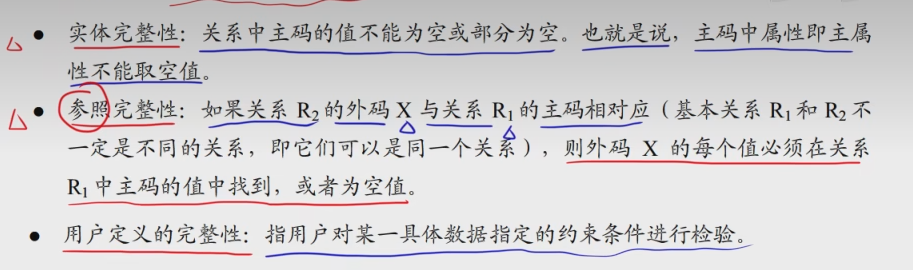

# 7、关系完整性约束

image-20241015164808259

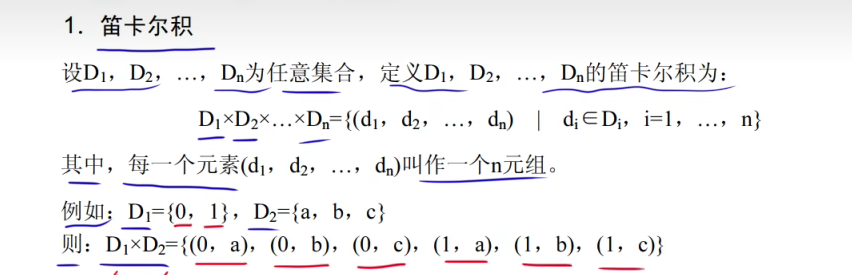

# 8、笛卡尔积

image-20241016224229822

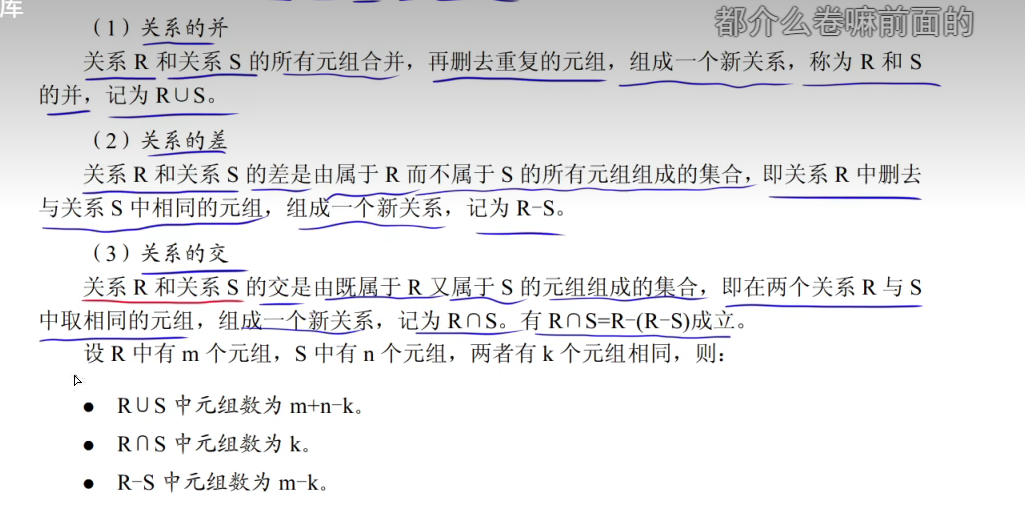

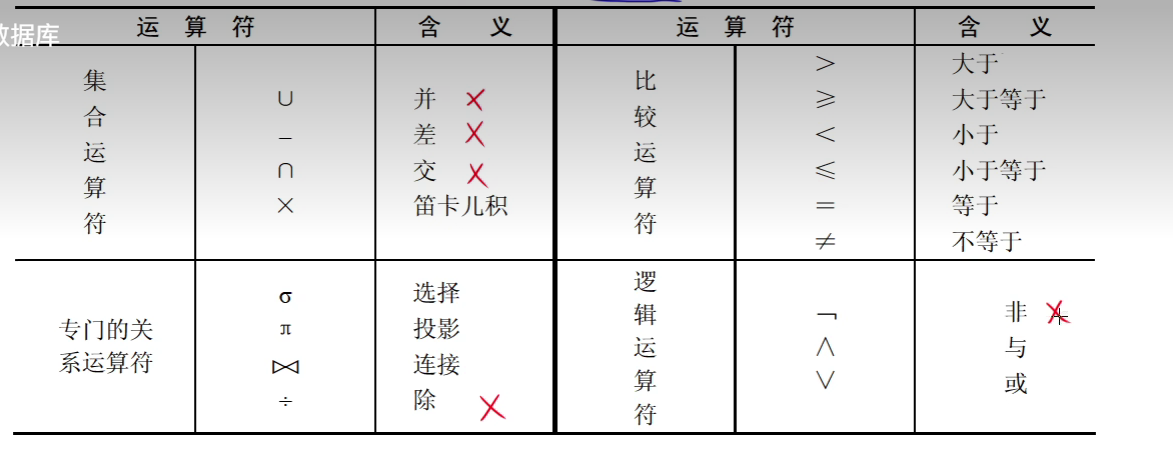

# 9、传统的集合运算

image-20241016224339790

image-20241016224459193

# 10、选择、投影、连接

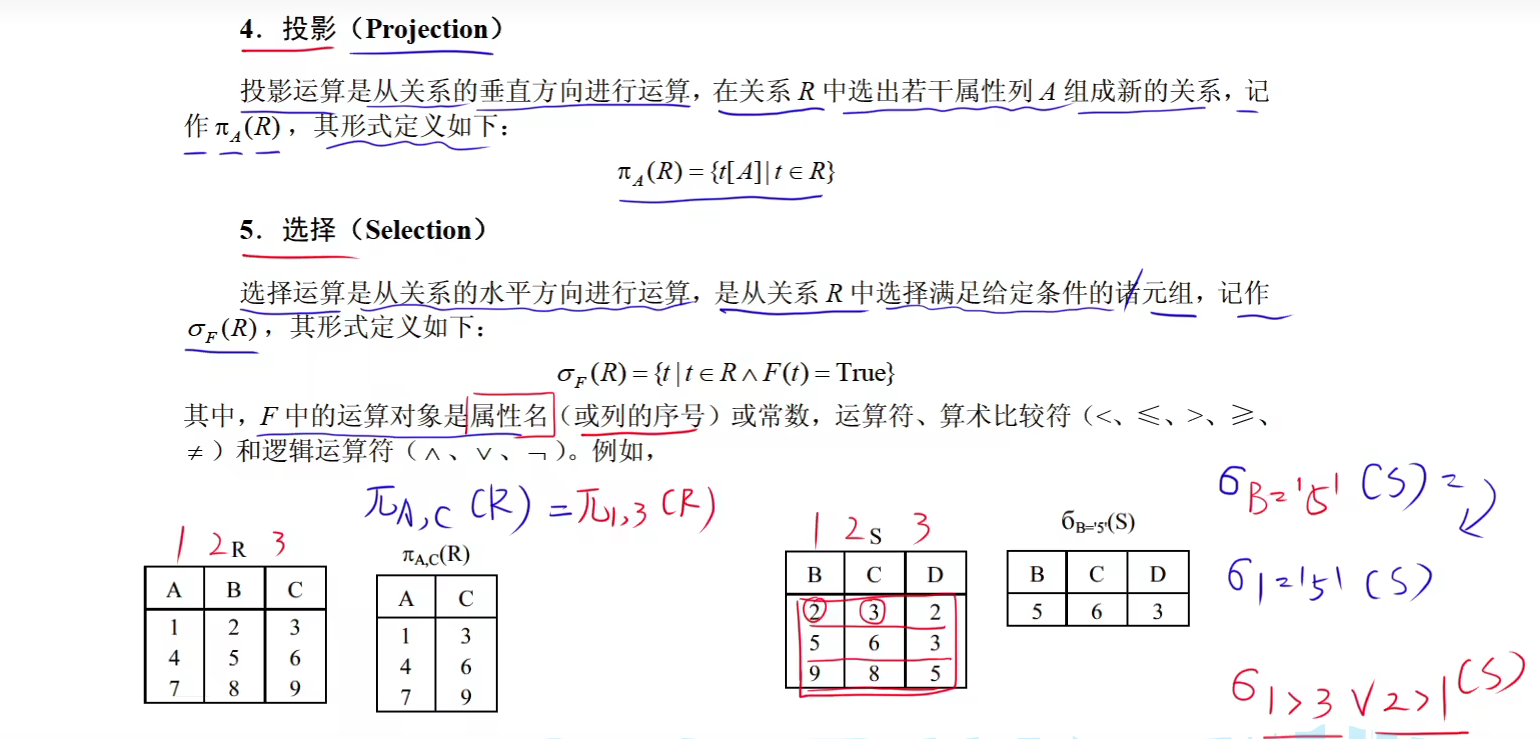

image-20241016225500988

image-20241016230117413

这个两个,自己去看视频

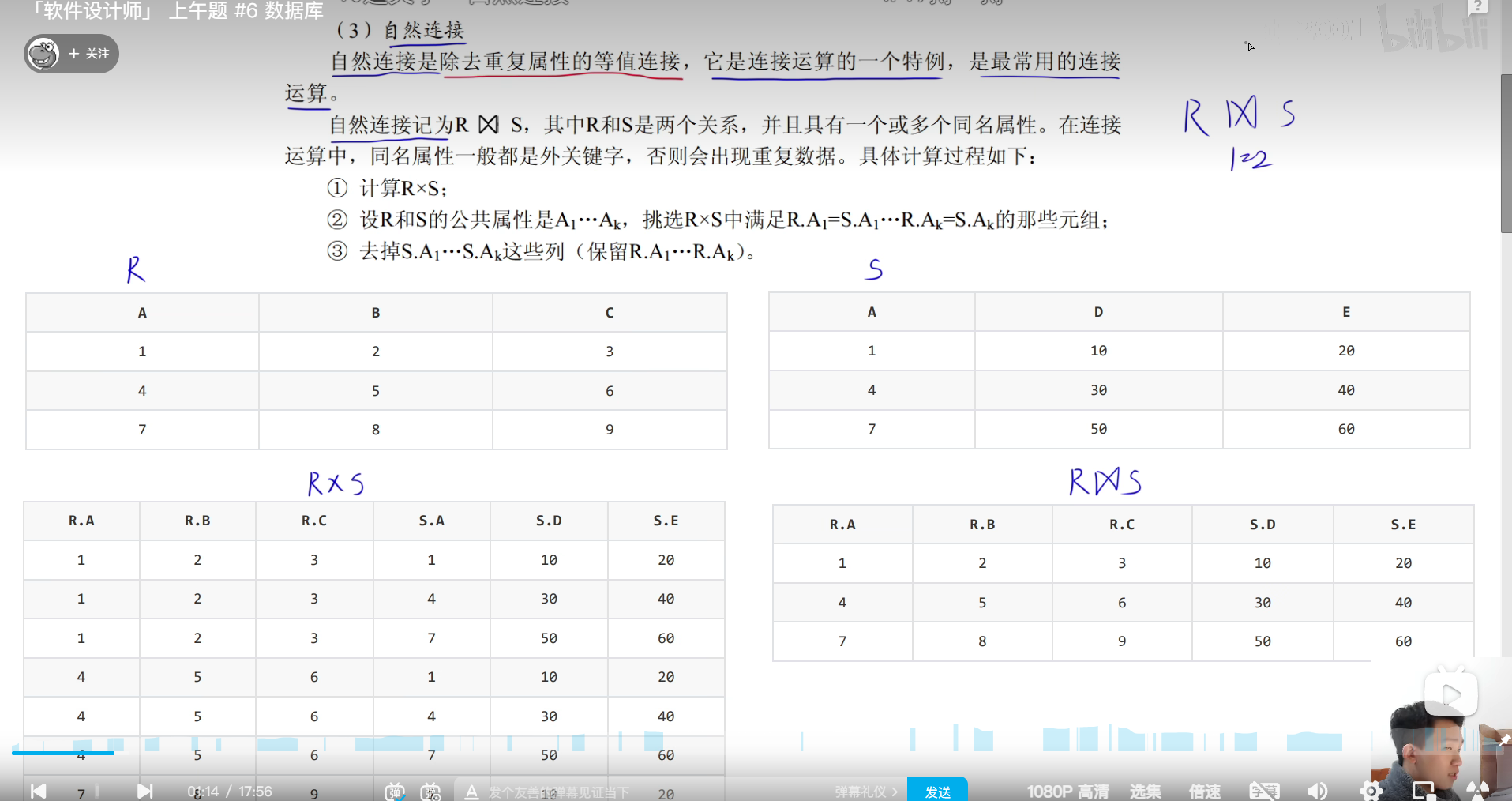

# 11、自然连接

image-20241016231001405

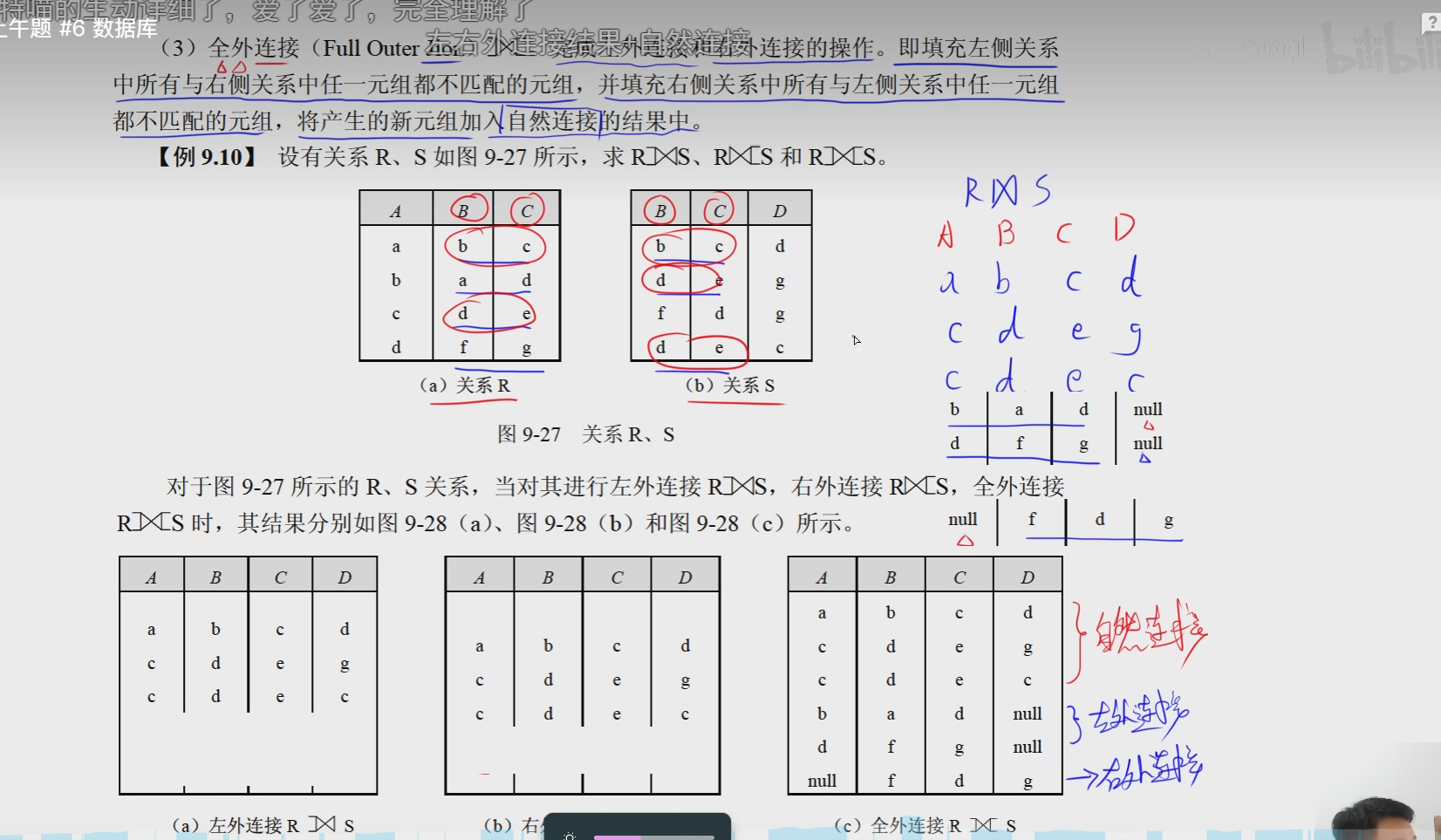

# 12、外连接

image-20241016231712628

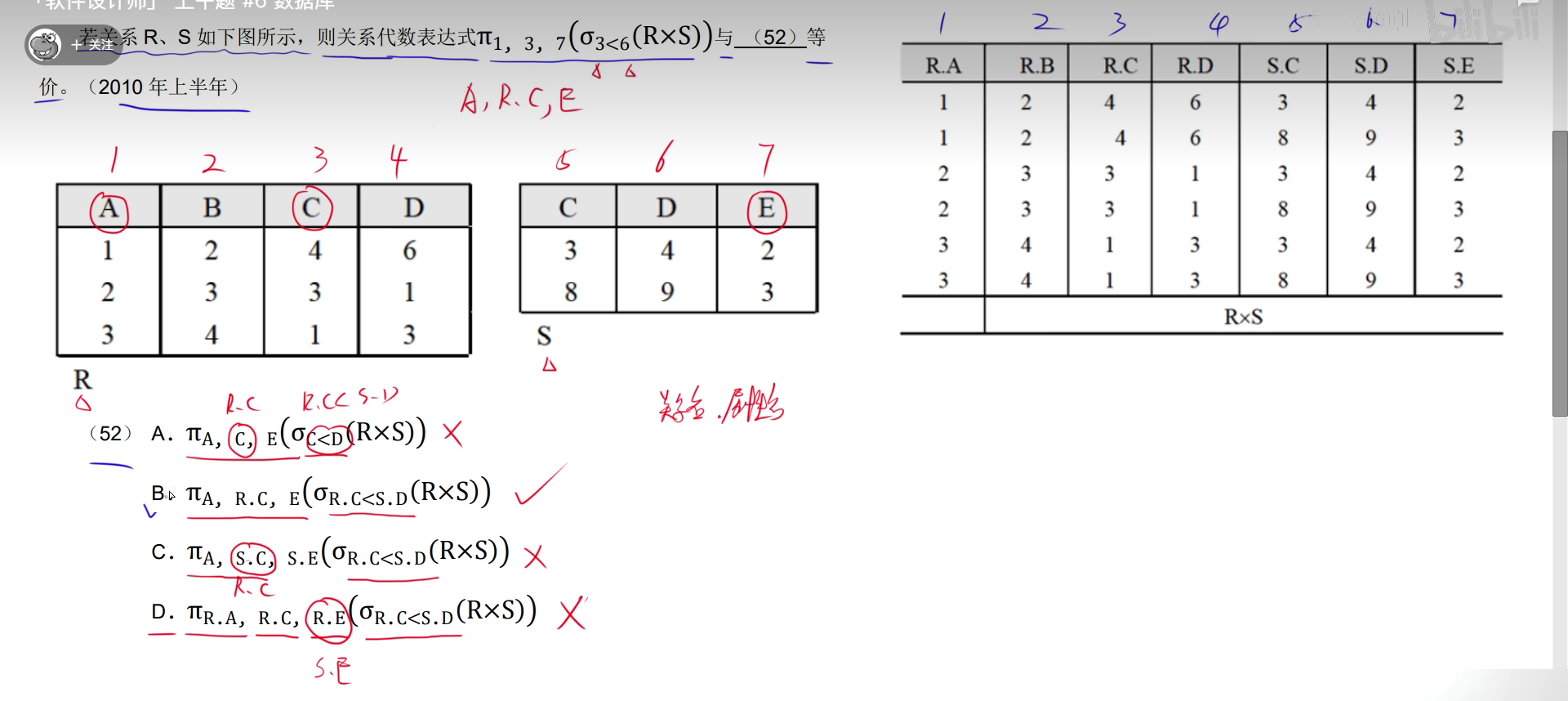

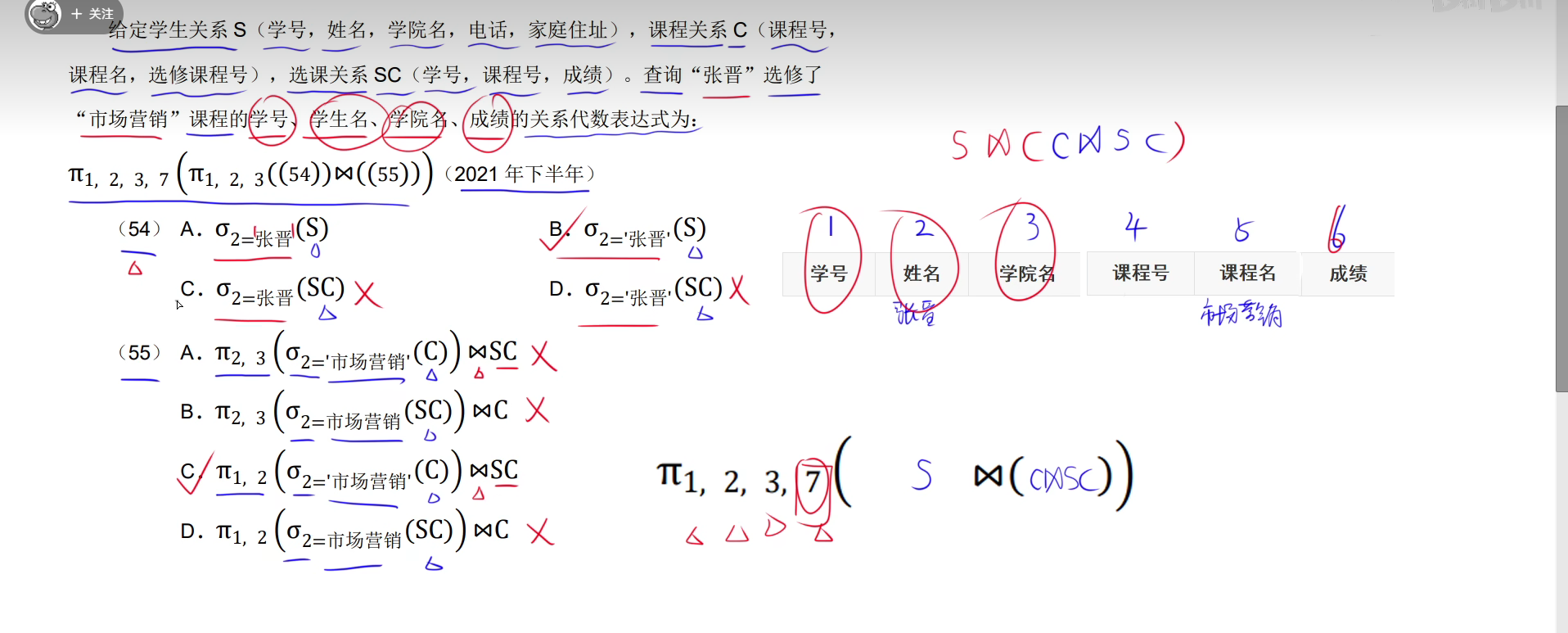

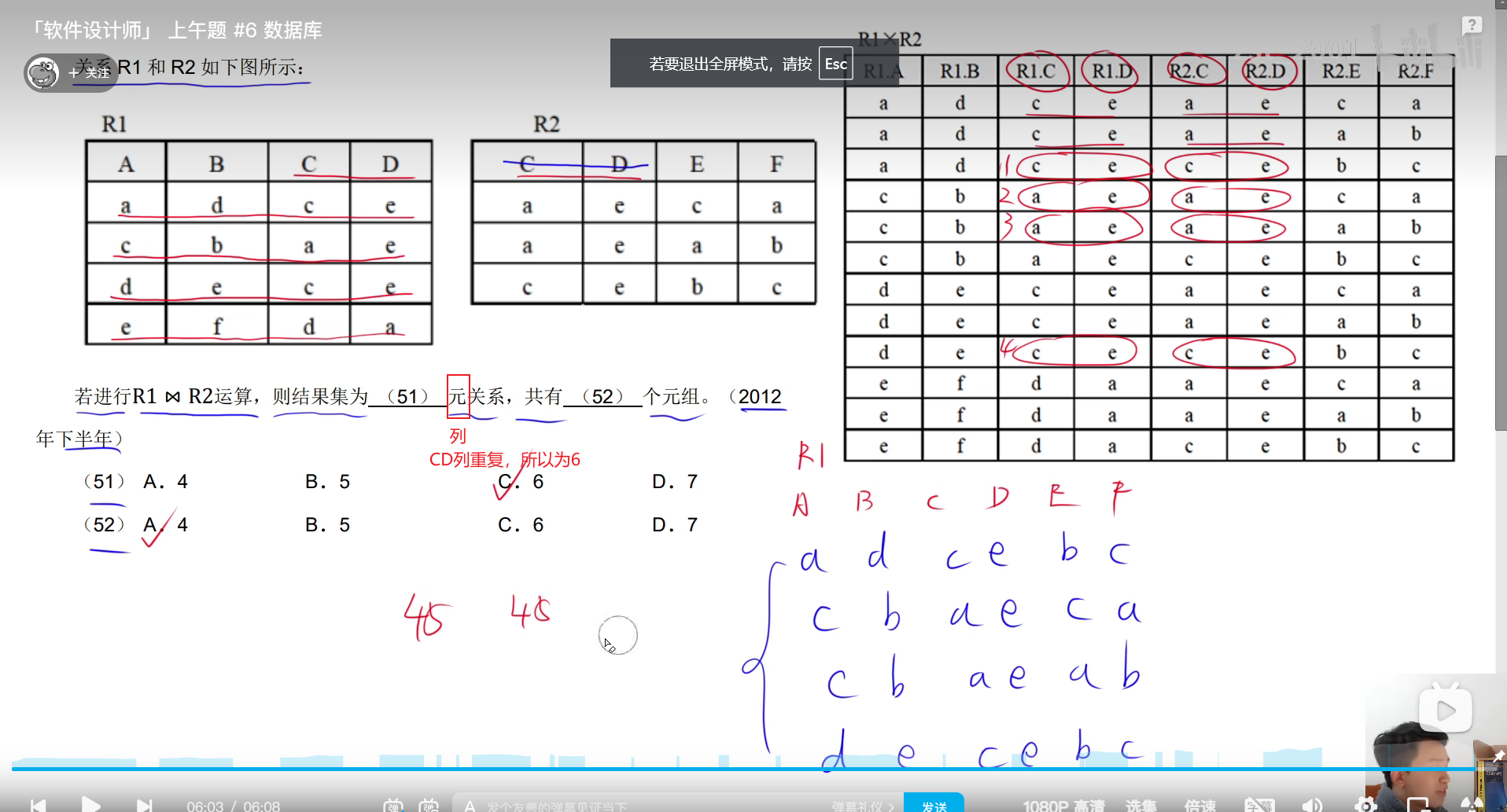

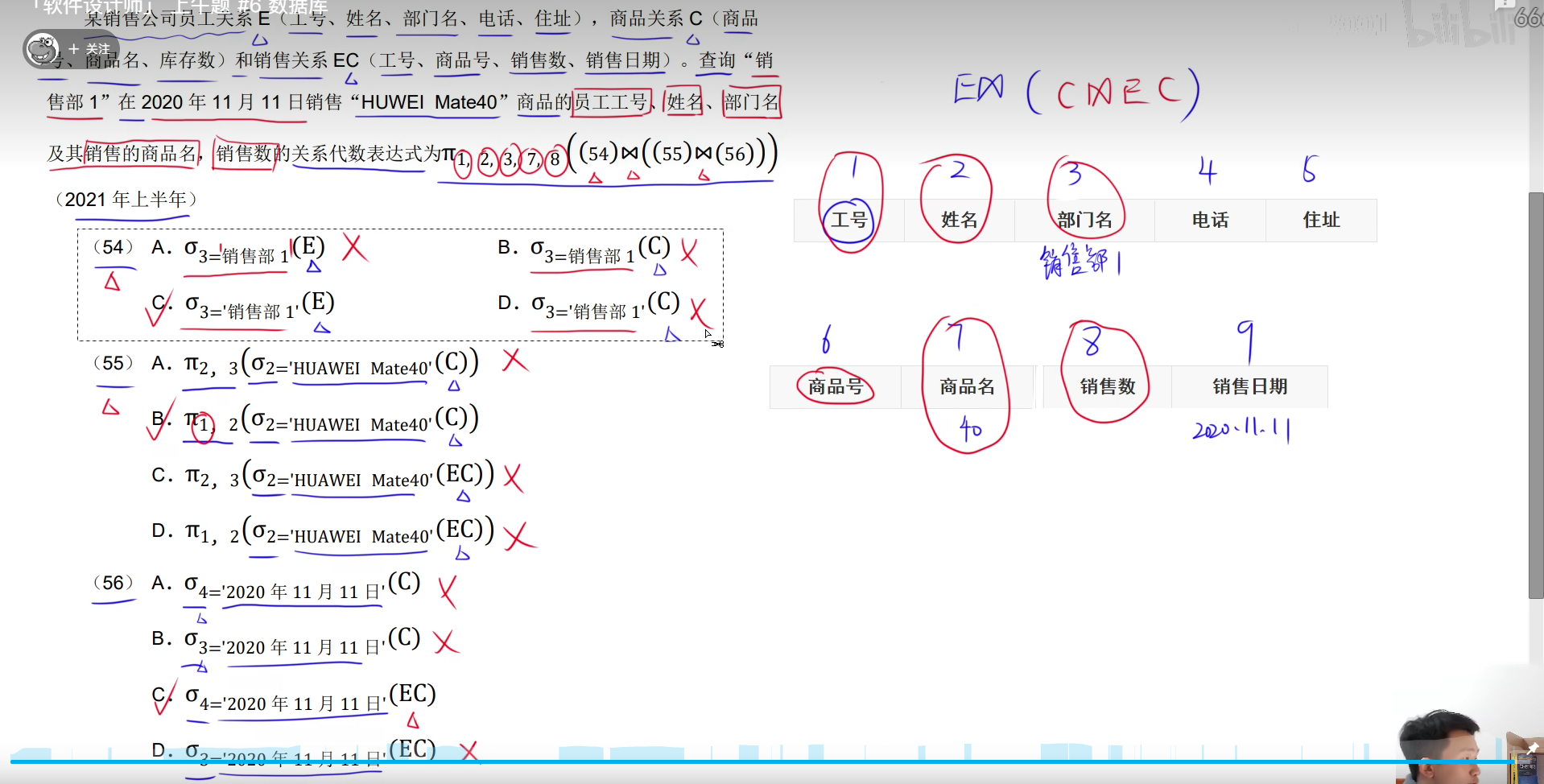

# 13、例题

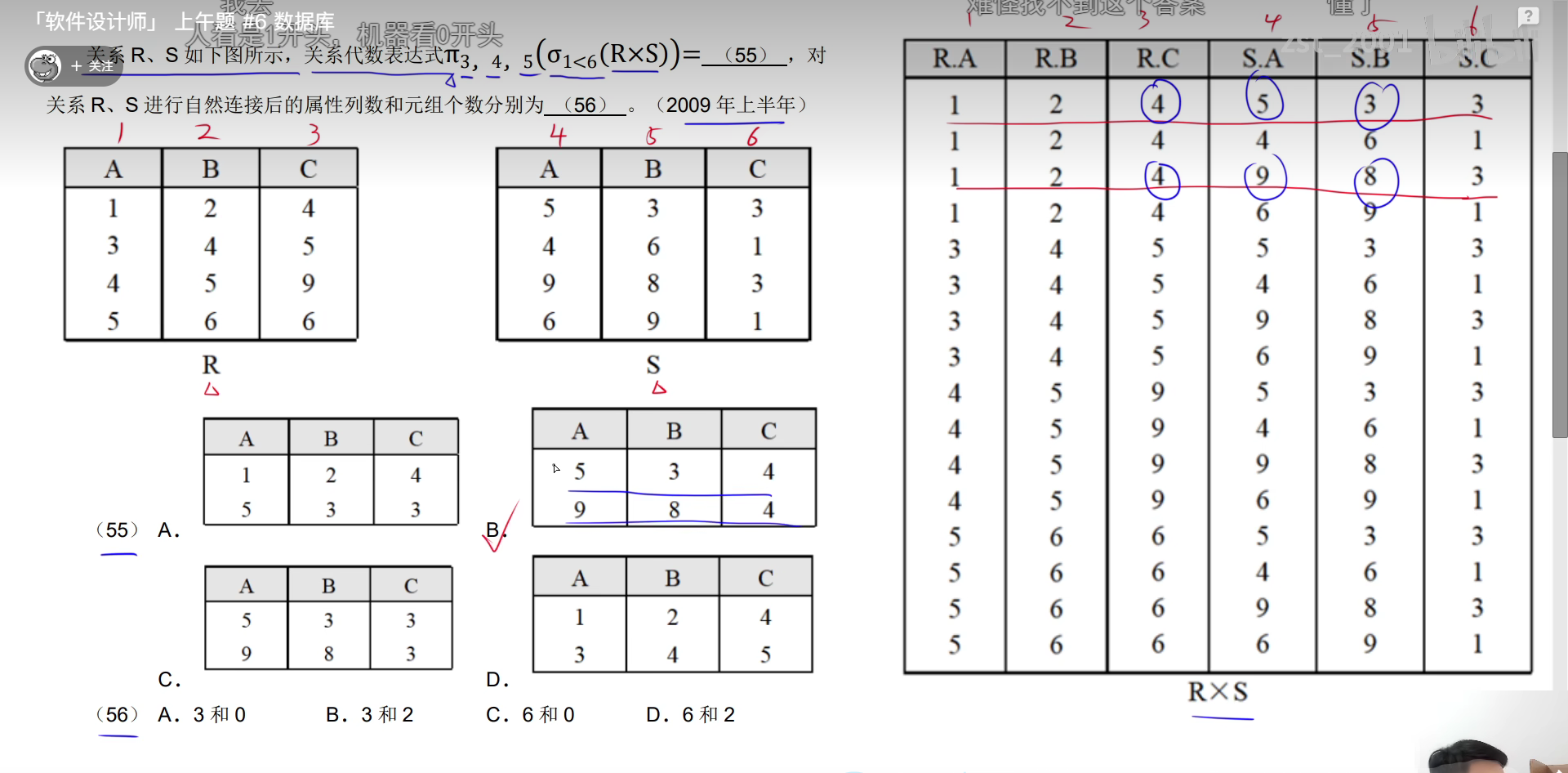

image-20241016232227949

image-20241016232618160

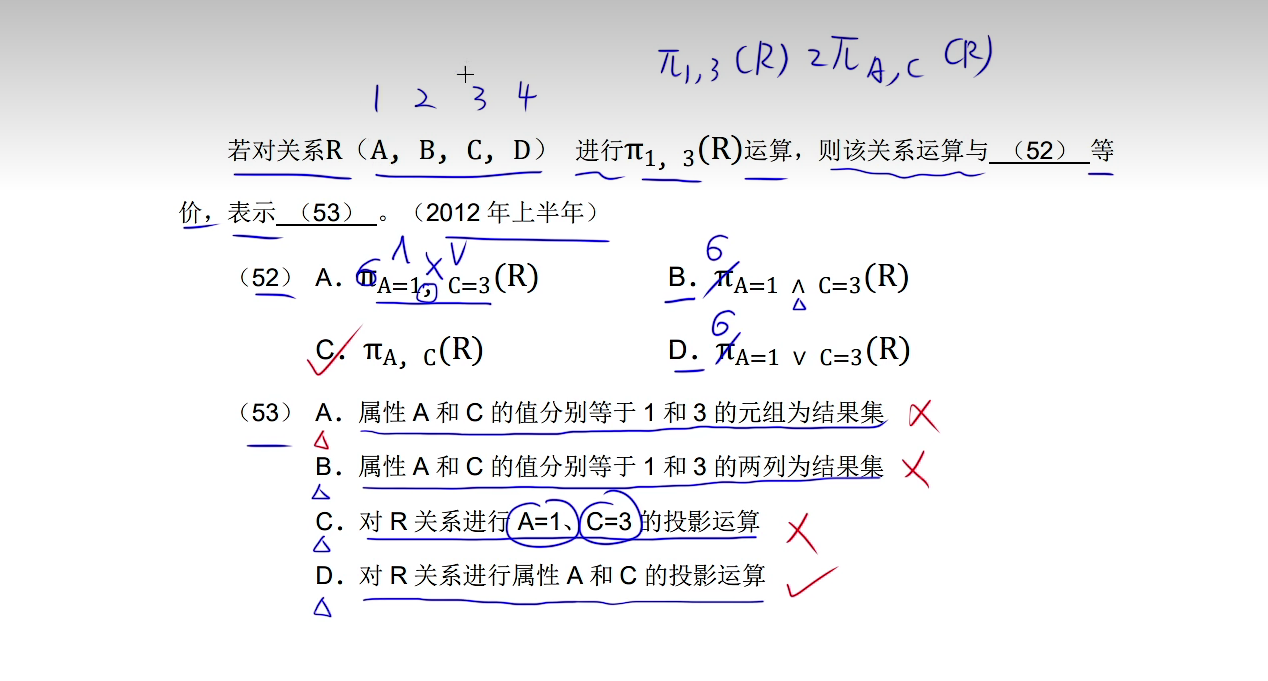

image-20241016232820672

image-20241016233140342

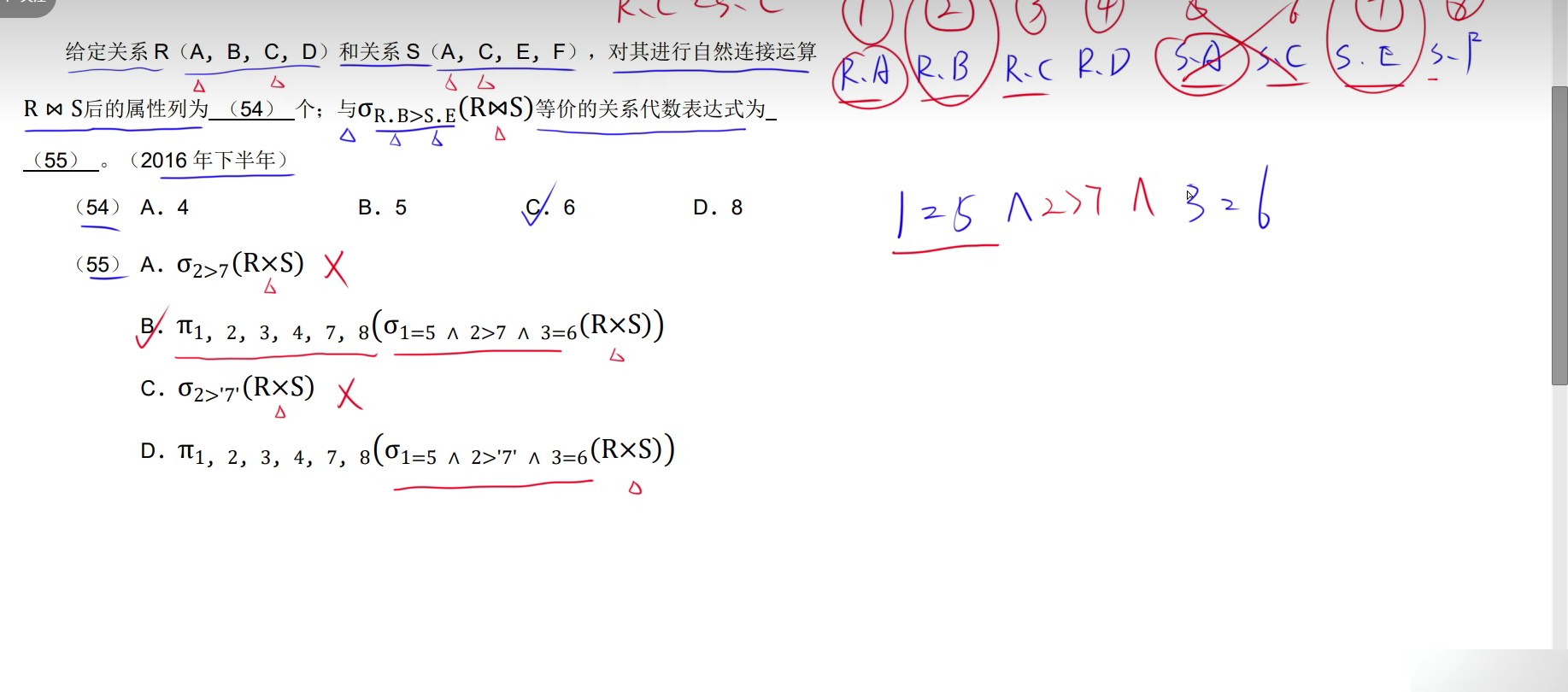

image-20241016233629646

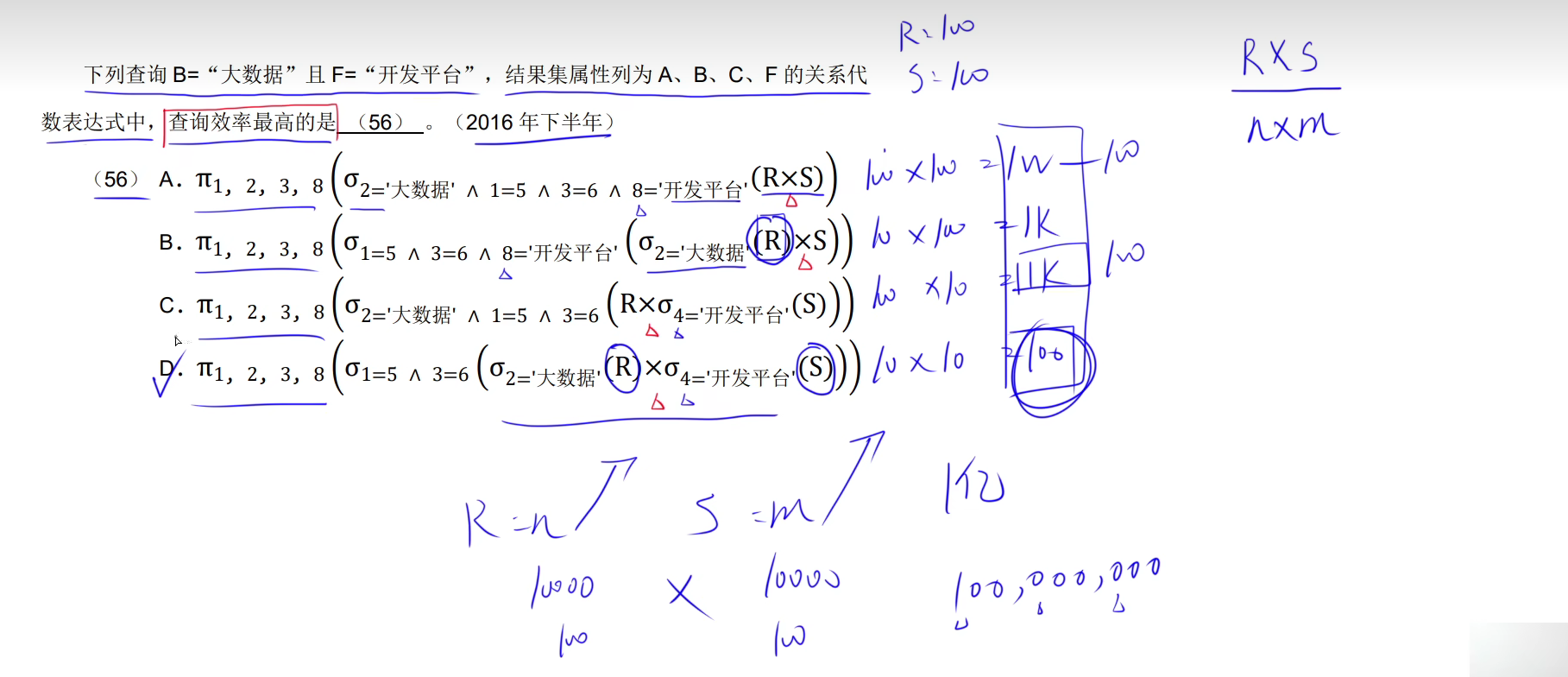

image-20241016233925869

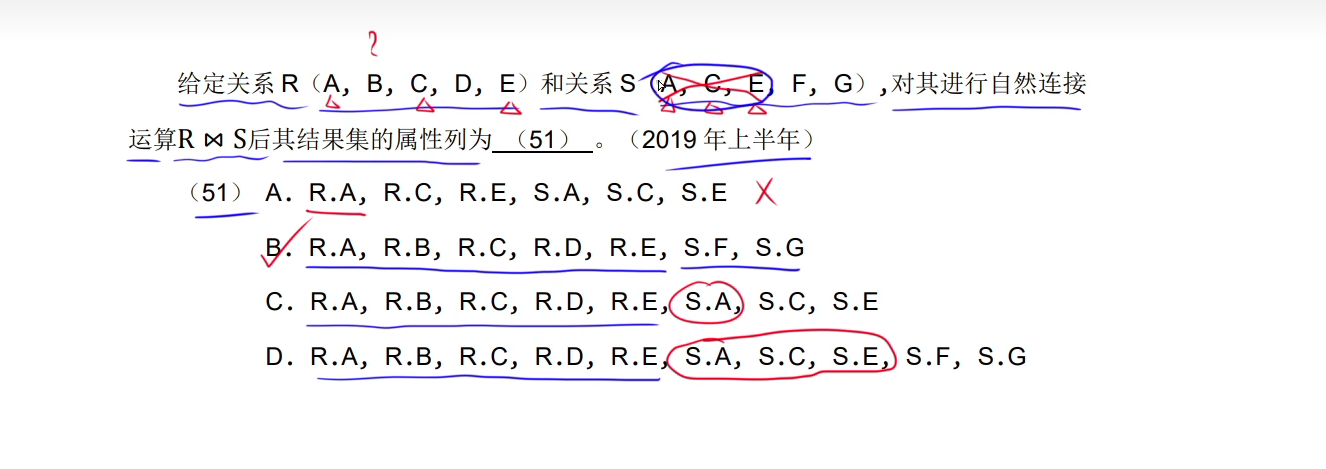

image-20241016234310343

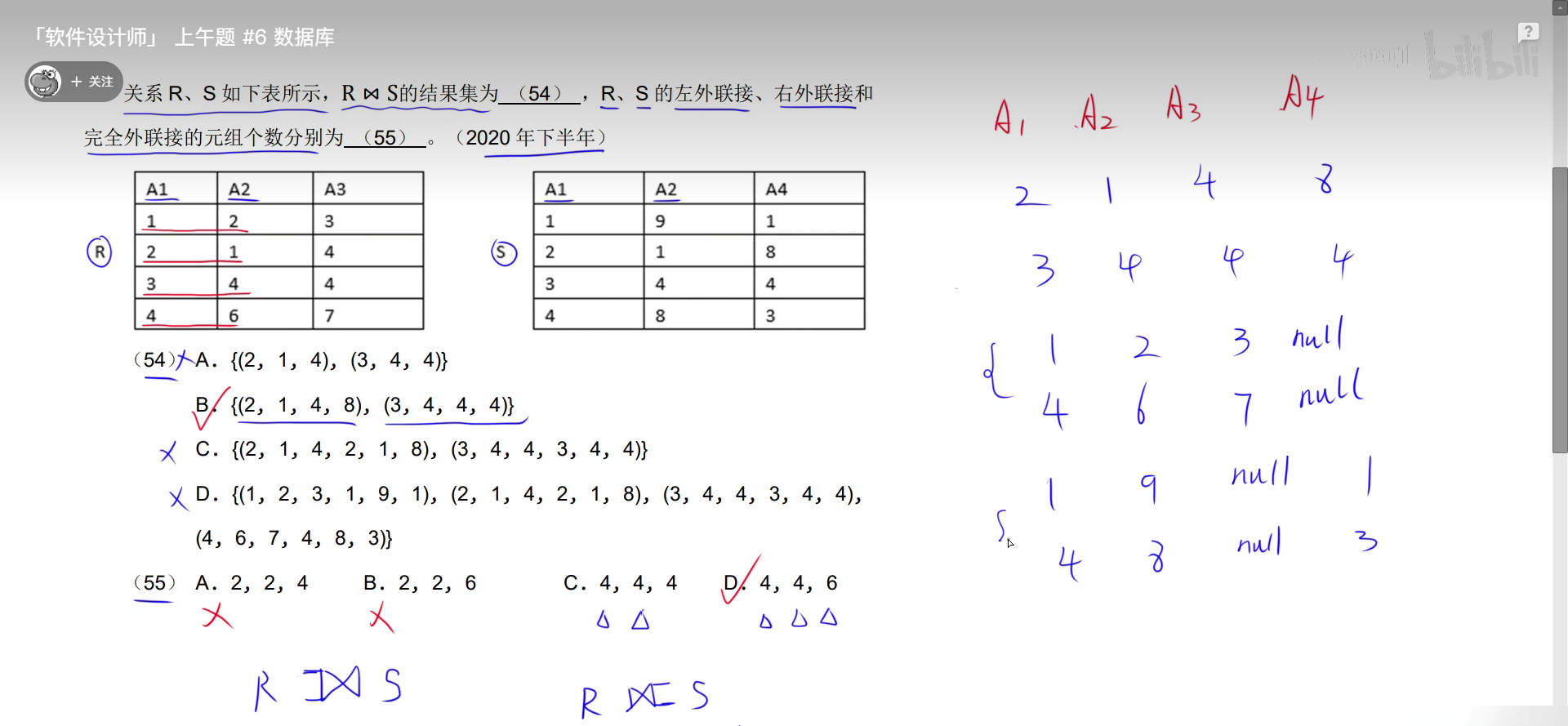

image-20241016234604147

image-20241016235108652

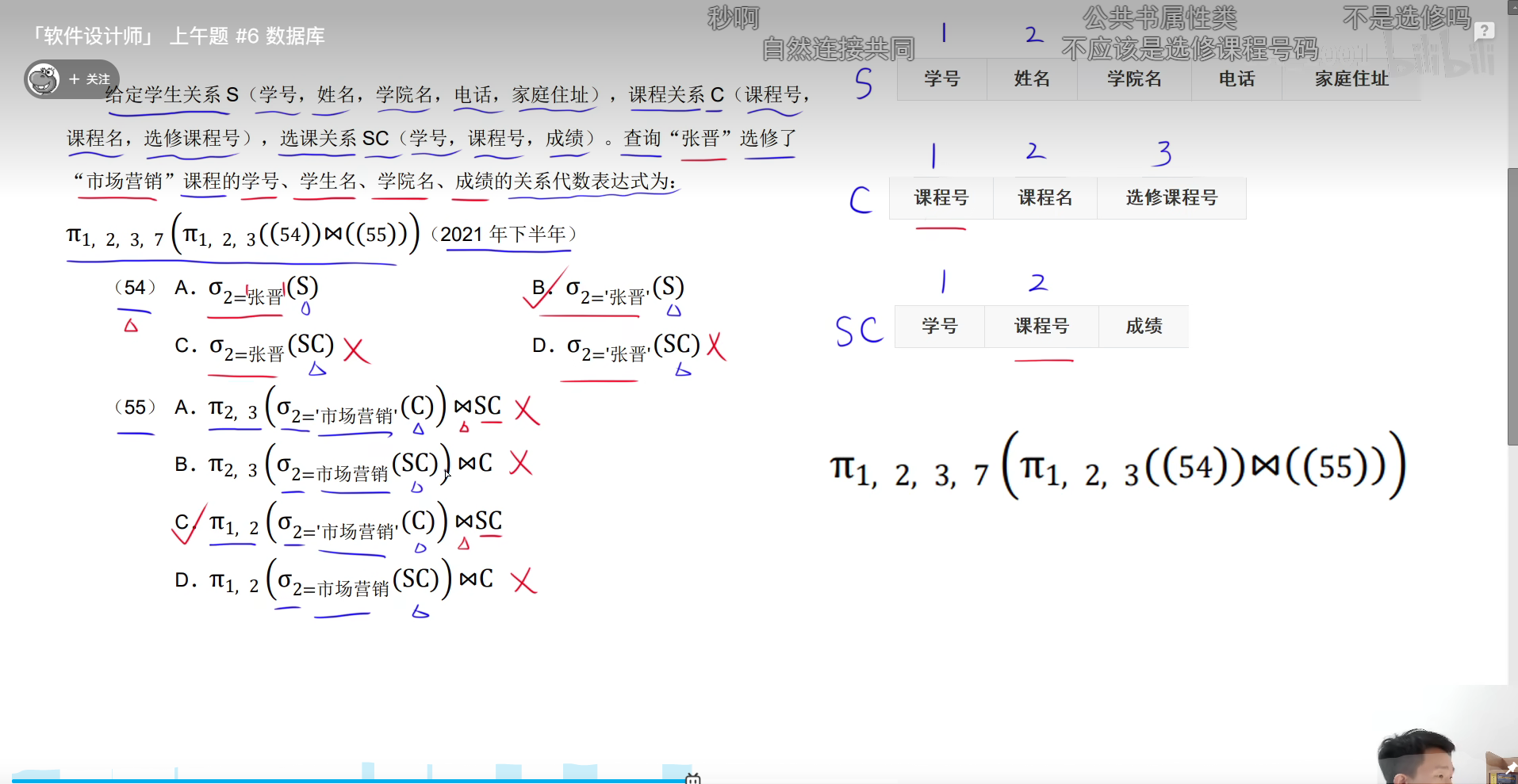

image-20241016235344598

image-20241016235355968

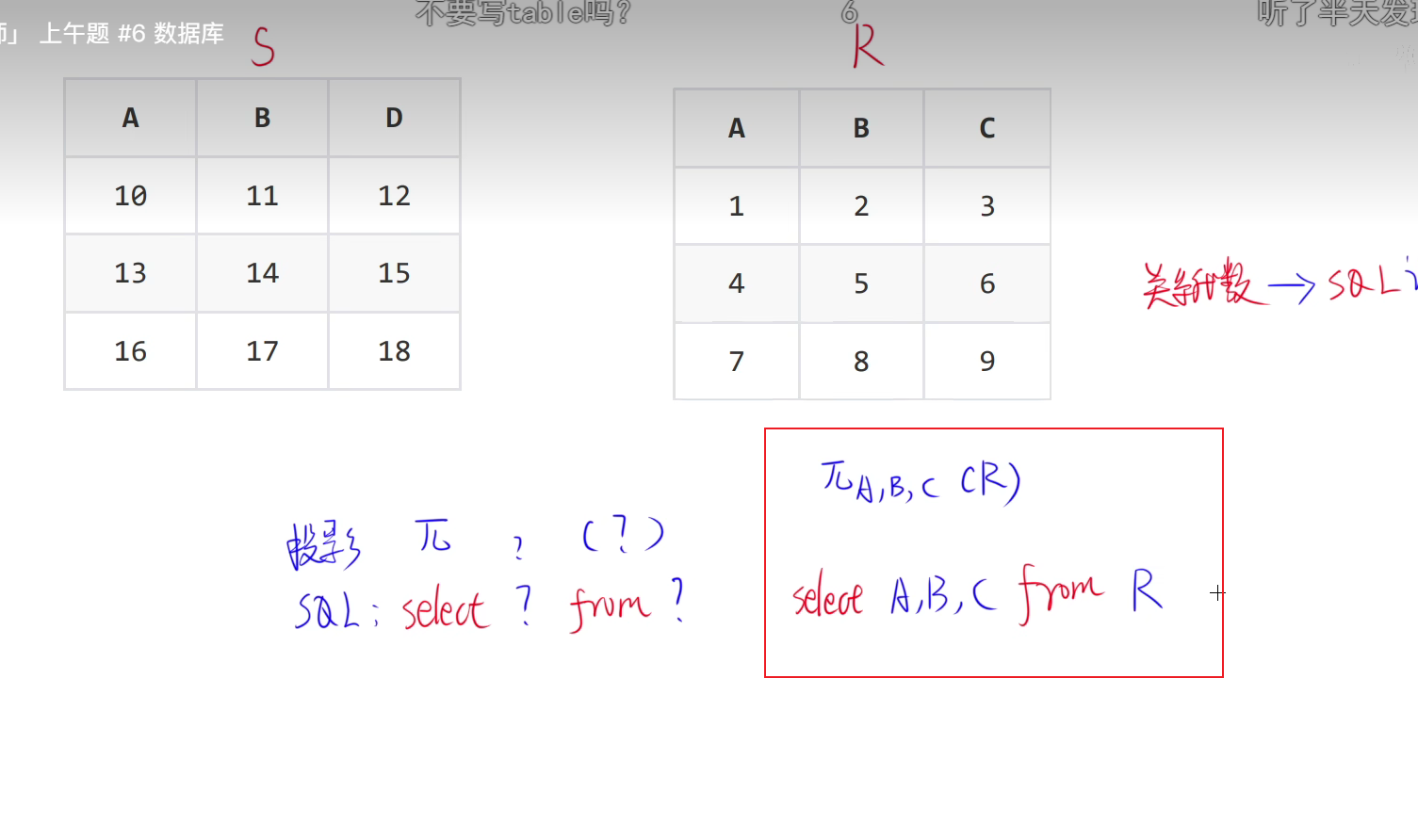

# 13、投影、选择转sql

image-20241017225920495

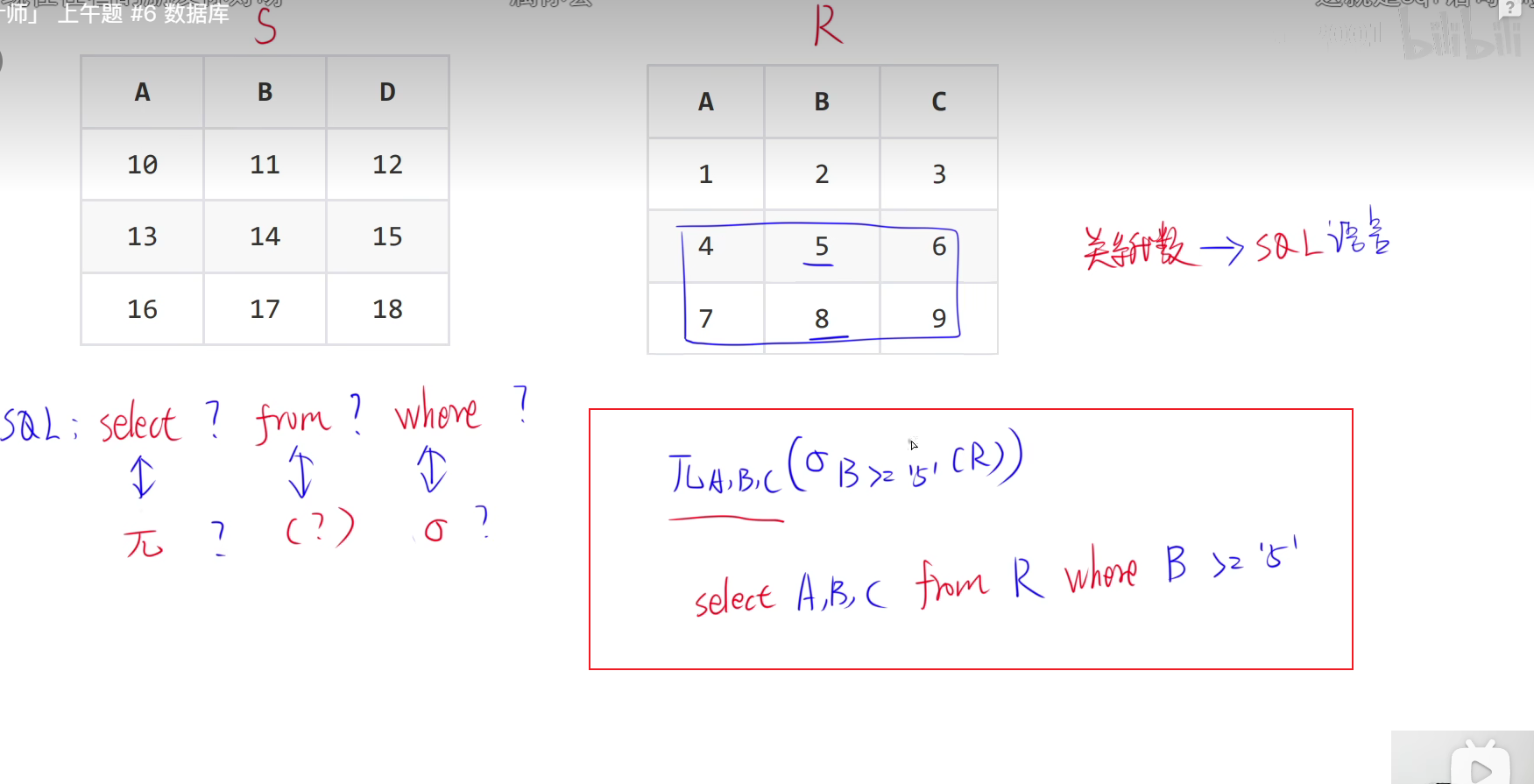

image-20241017225938548

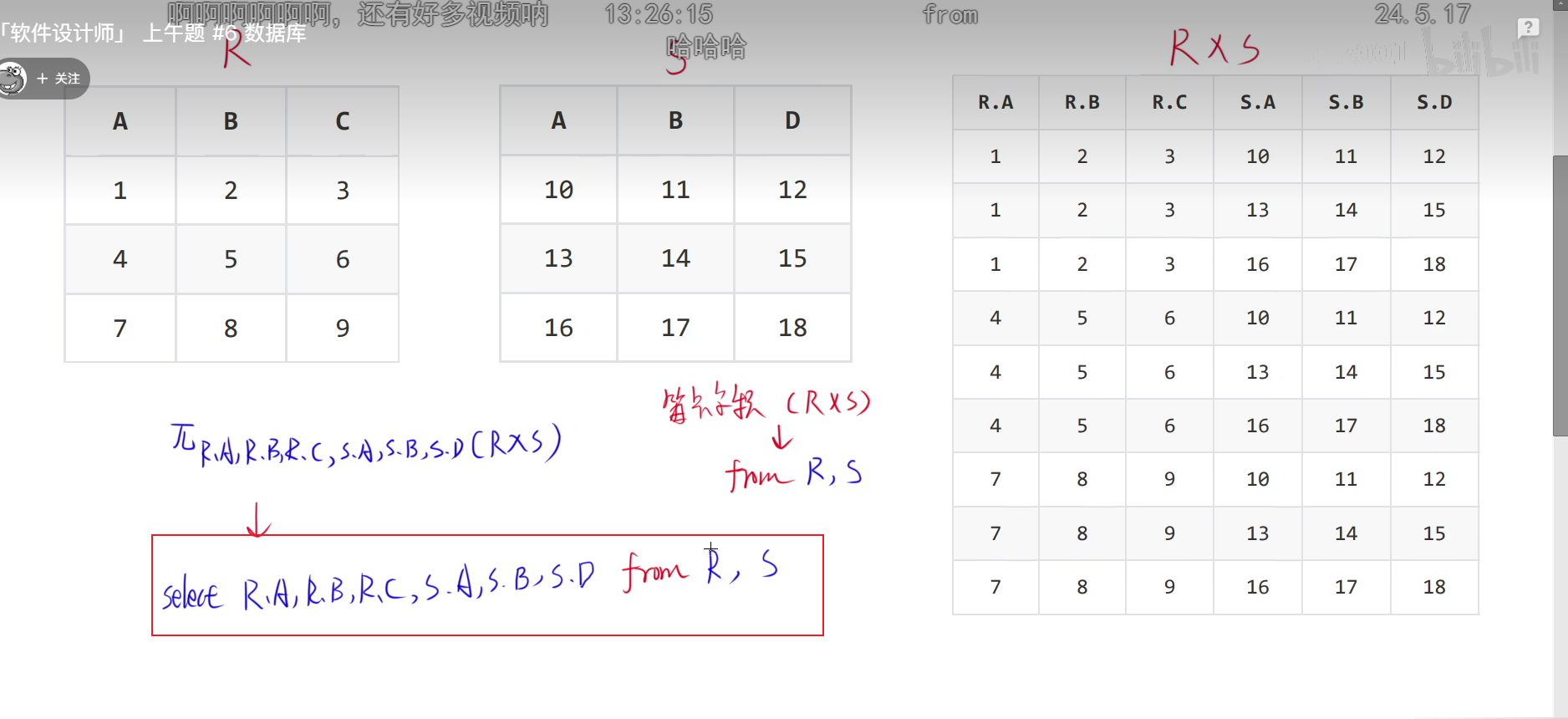

# 14、笛卡尔积转sql语言

image-20241017230048217

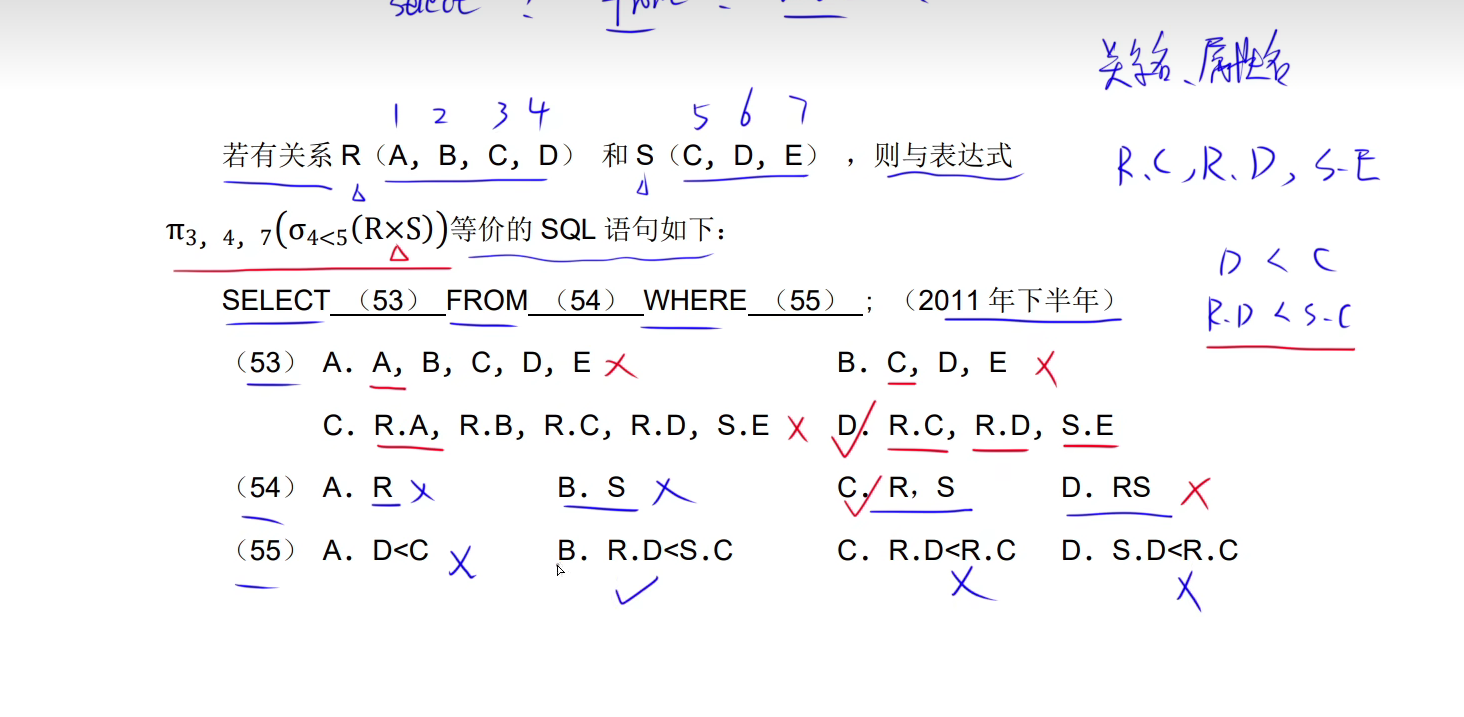

image-20241017230435953

# 15、自然连接转sql

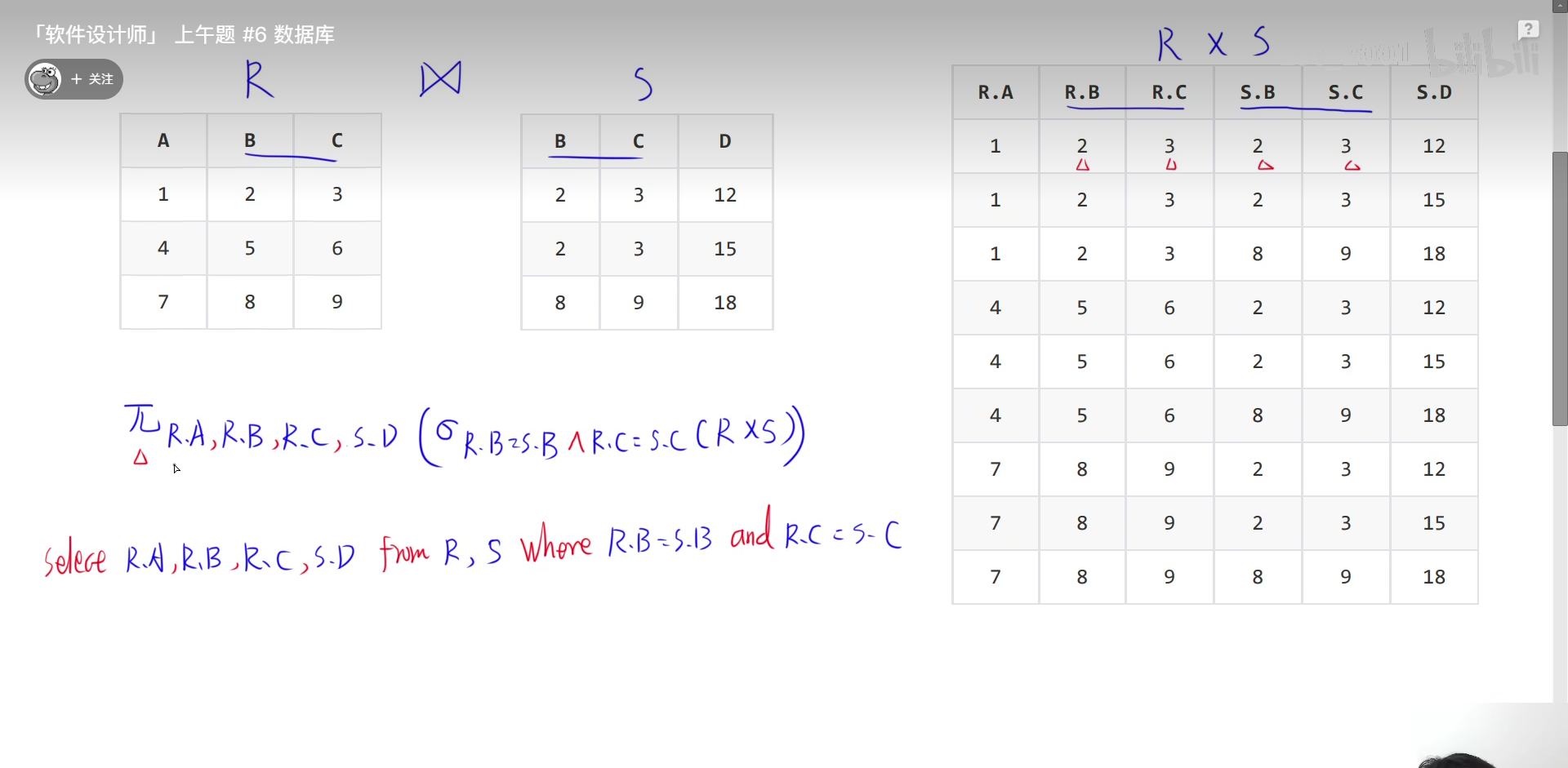

image-20241017230604258

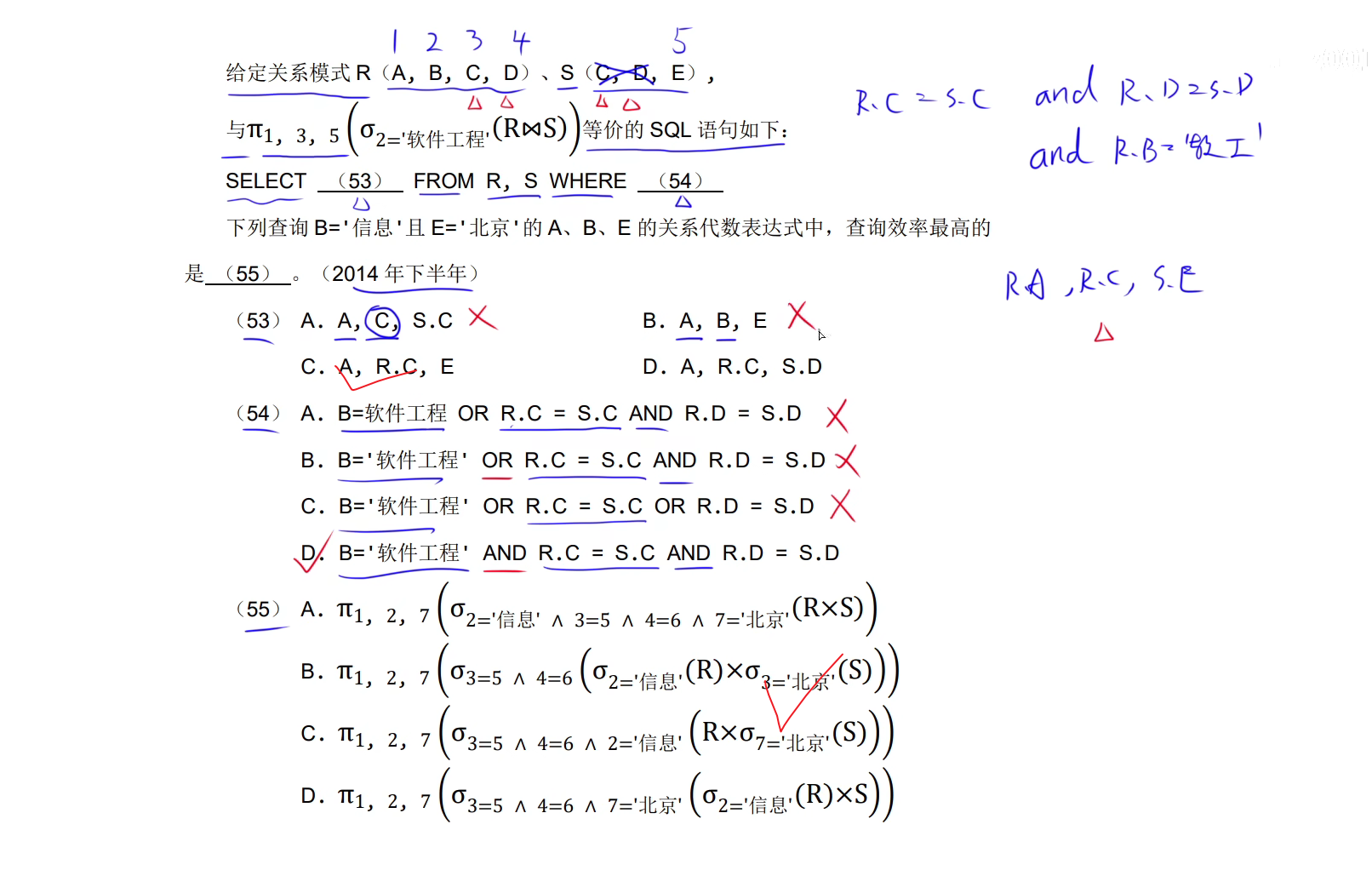

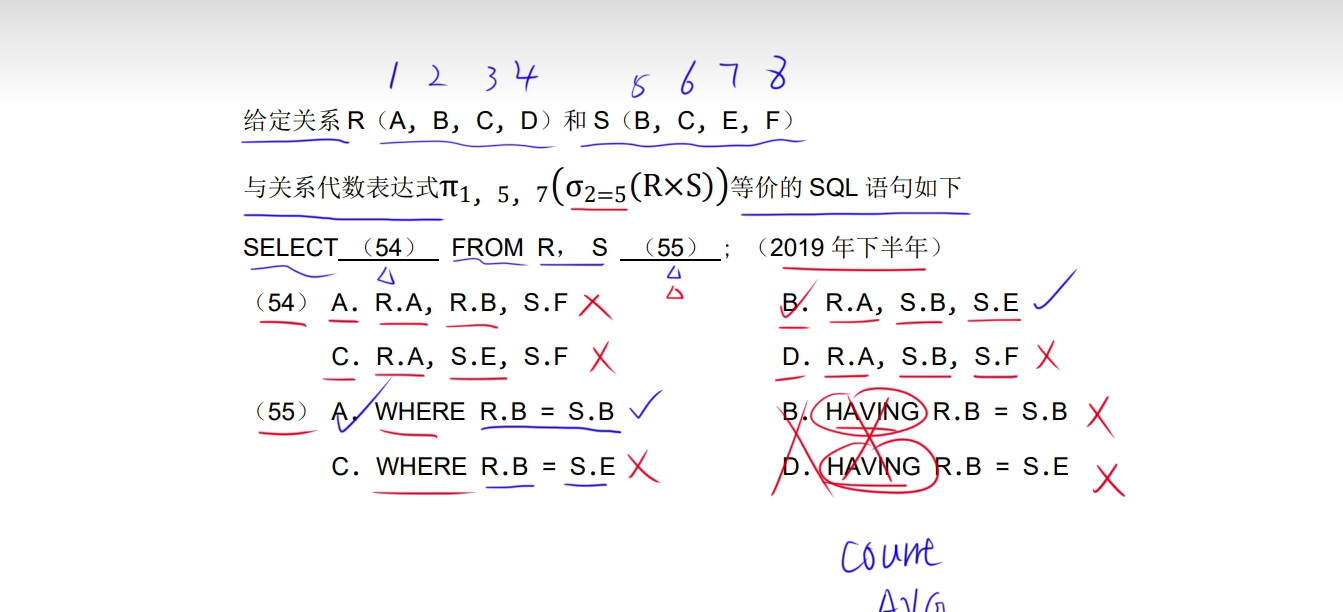

# 16、例题:

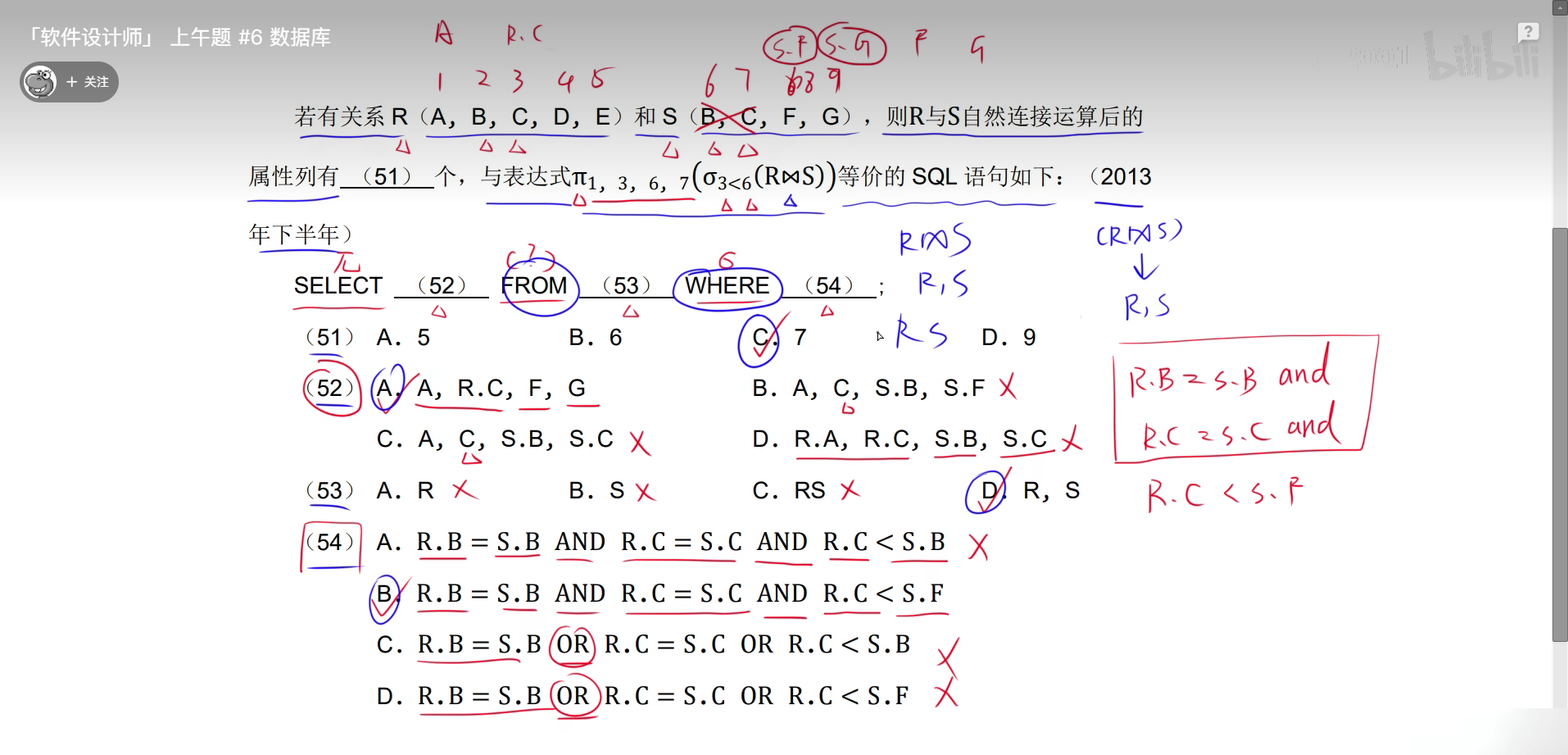

image-20241017231338422

image-20241017231910332

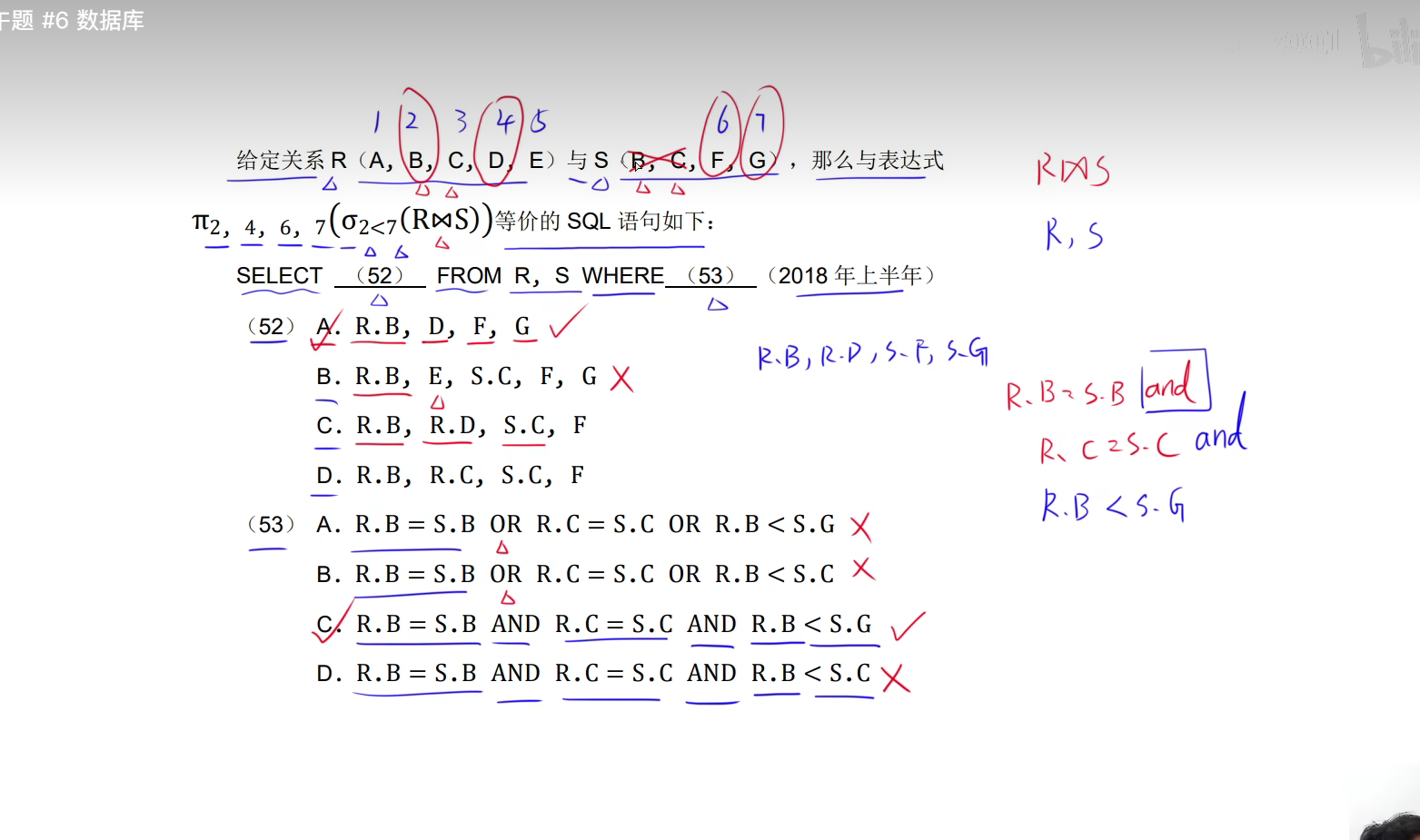

image-20241017232039205

image-20241017232152460

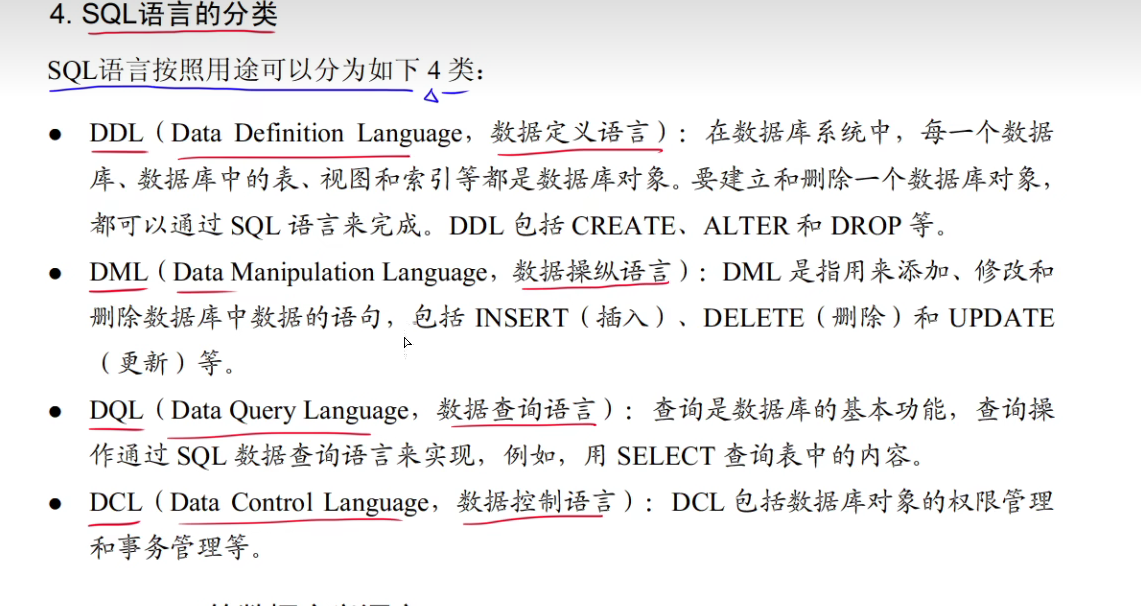

# 17、数据定义语言

image-20241017232324599、

# 18、where条件查询

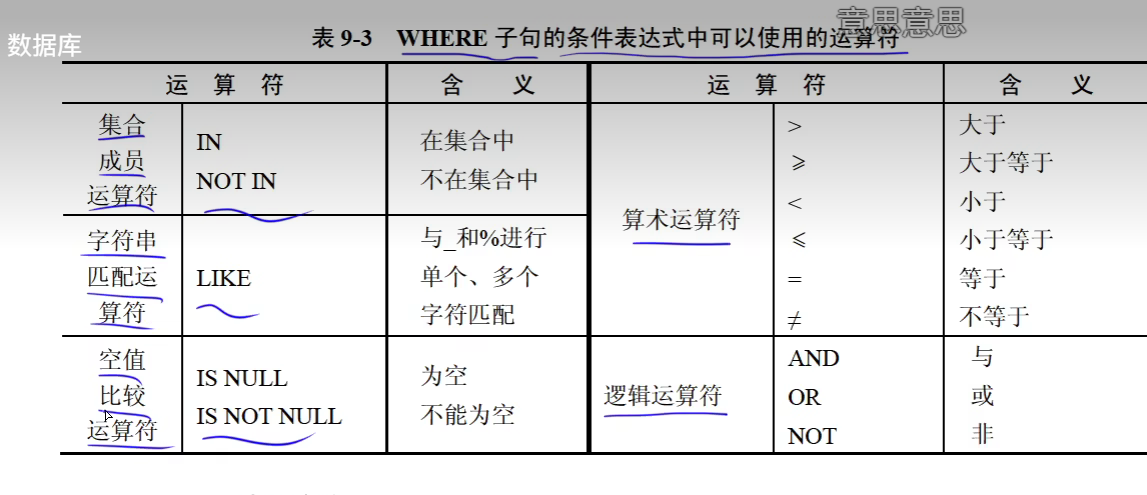

image-20241019154544828

select * from studentTabel where score between 30 and 90;

select * from studentTable where name like "罗%"

select * from studentTable where name like "罗__"

select * from studentTable where name not like "罗"

select * from studentTable where score in (90,91,92)

select * from studentTable where score not in (90,91,92)

select * from studentTable where name ="王芳" and sex = "女"

select * from student where name is not Null

# 19、排序查询

默认为升序

降序

select * from student where 性别='男' order by 班号 desc

升序

select * from student where 性别='男' order by 班号 asc

多个排序条件

select * from student where 性别='男' order by 班号 asc , 分数 asc

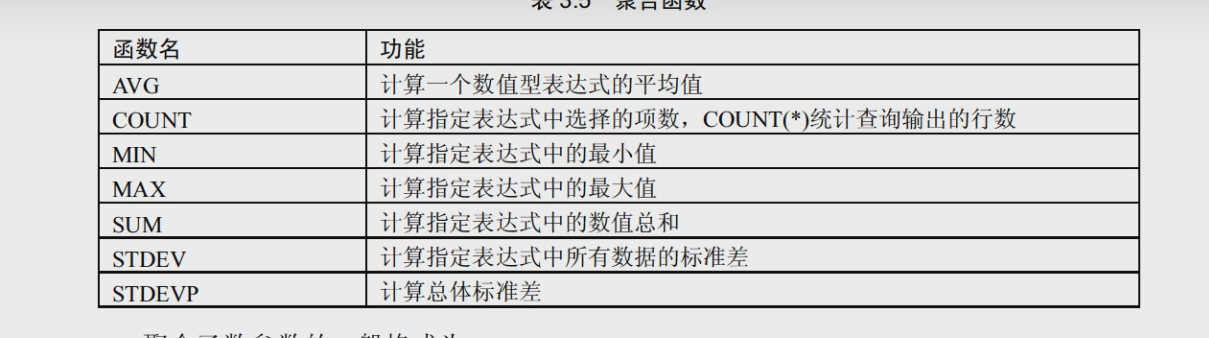

# 20、使用聚合函数

image-20241019154941868

image-20241019155000233

先将课程号去重,然后在进行一个统计

image-20241019155052909

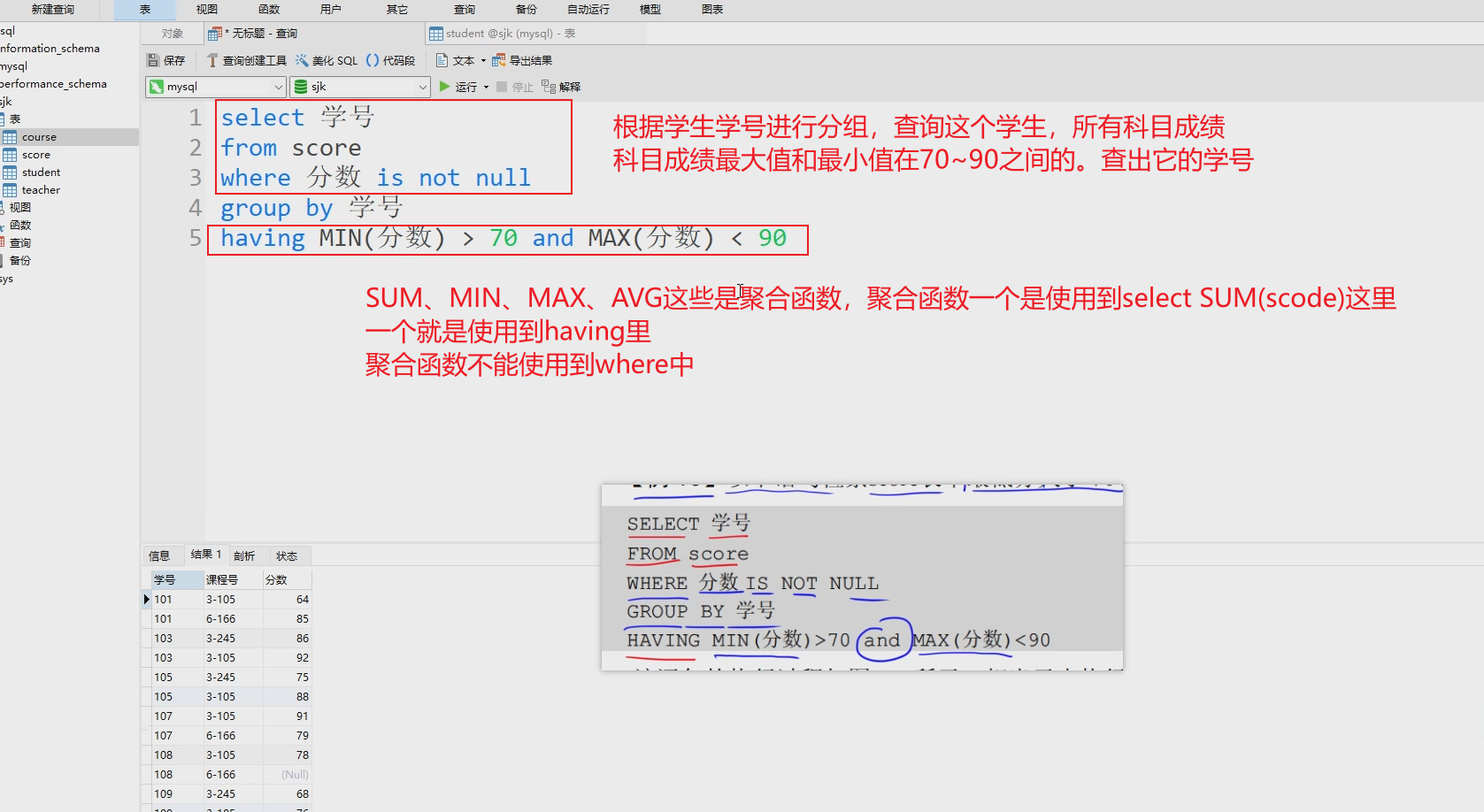

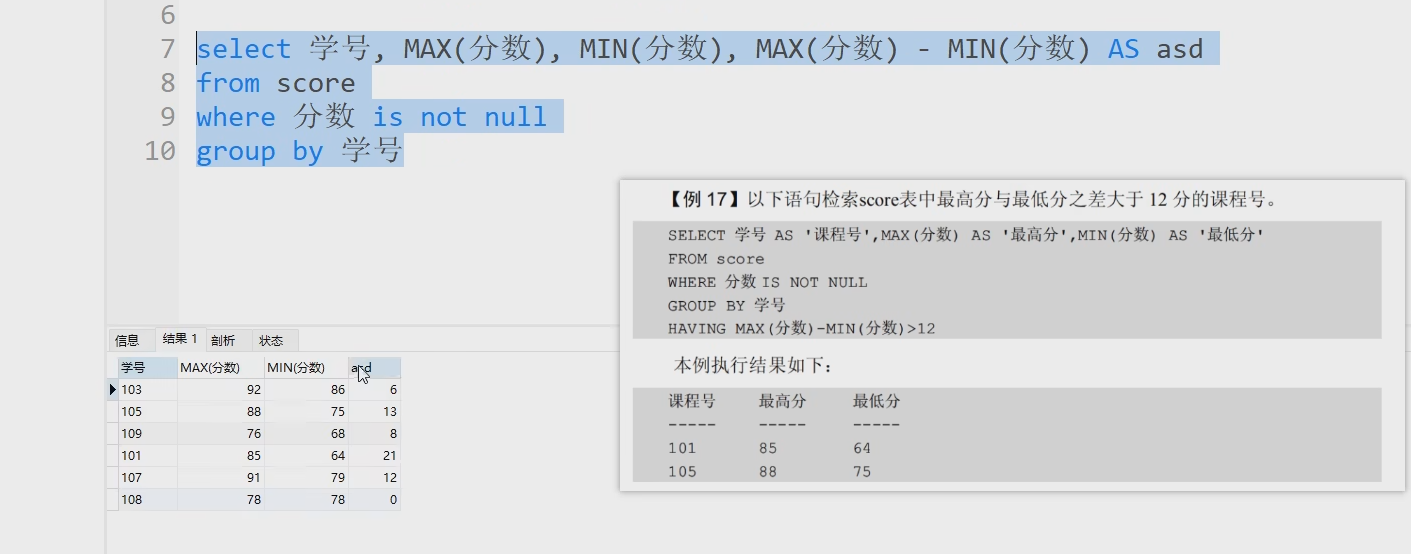

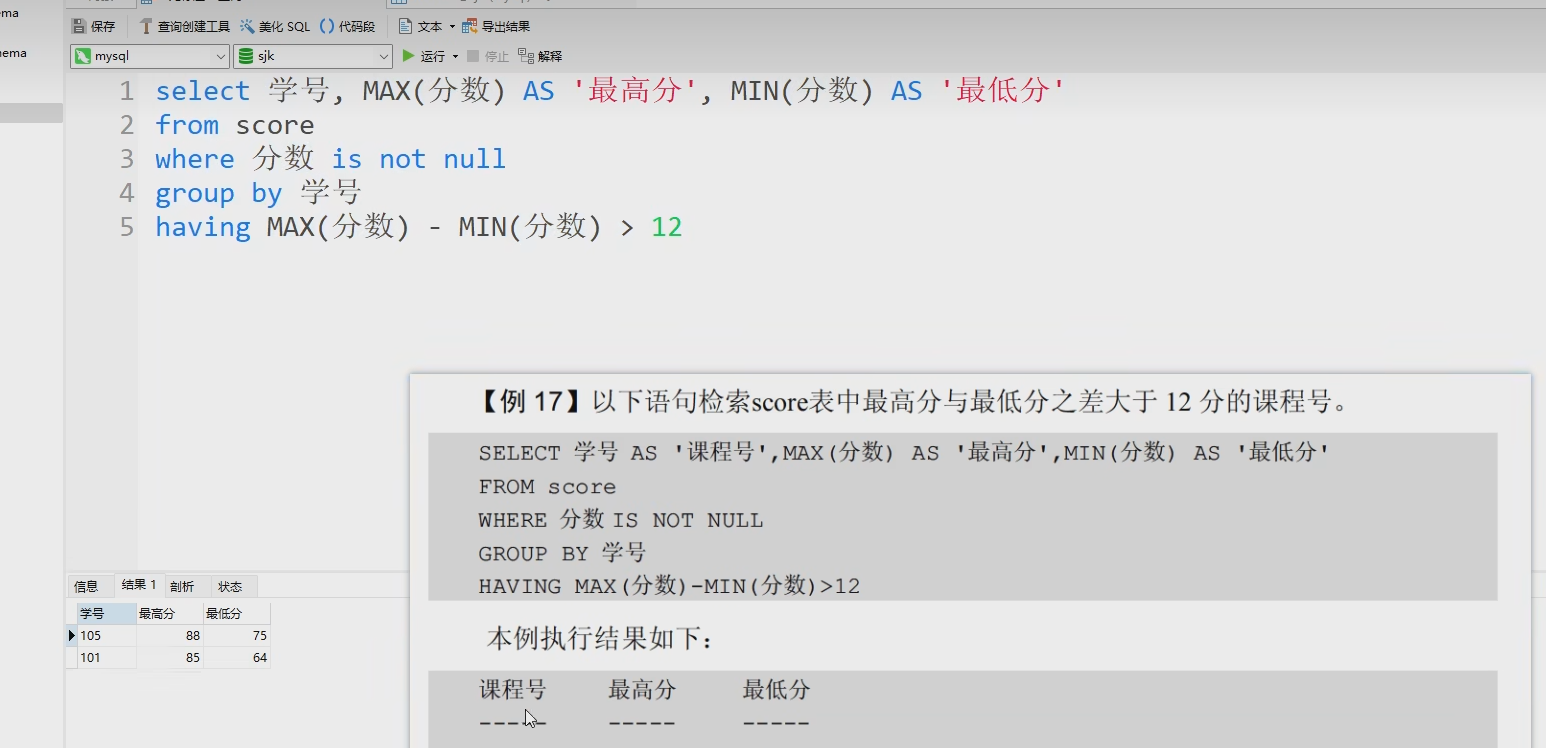

# 21、数据分组

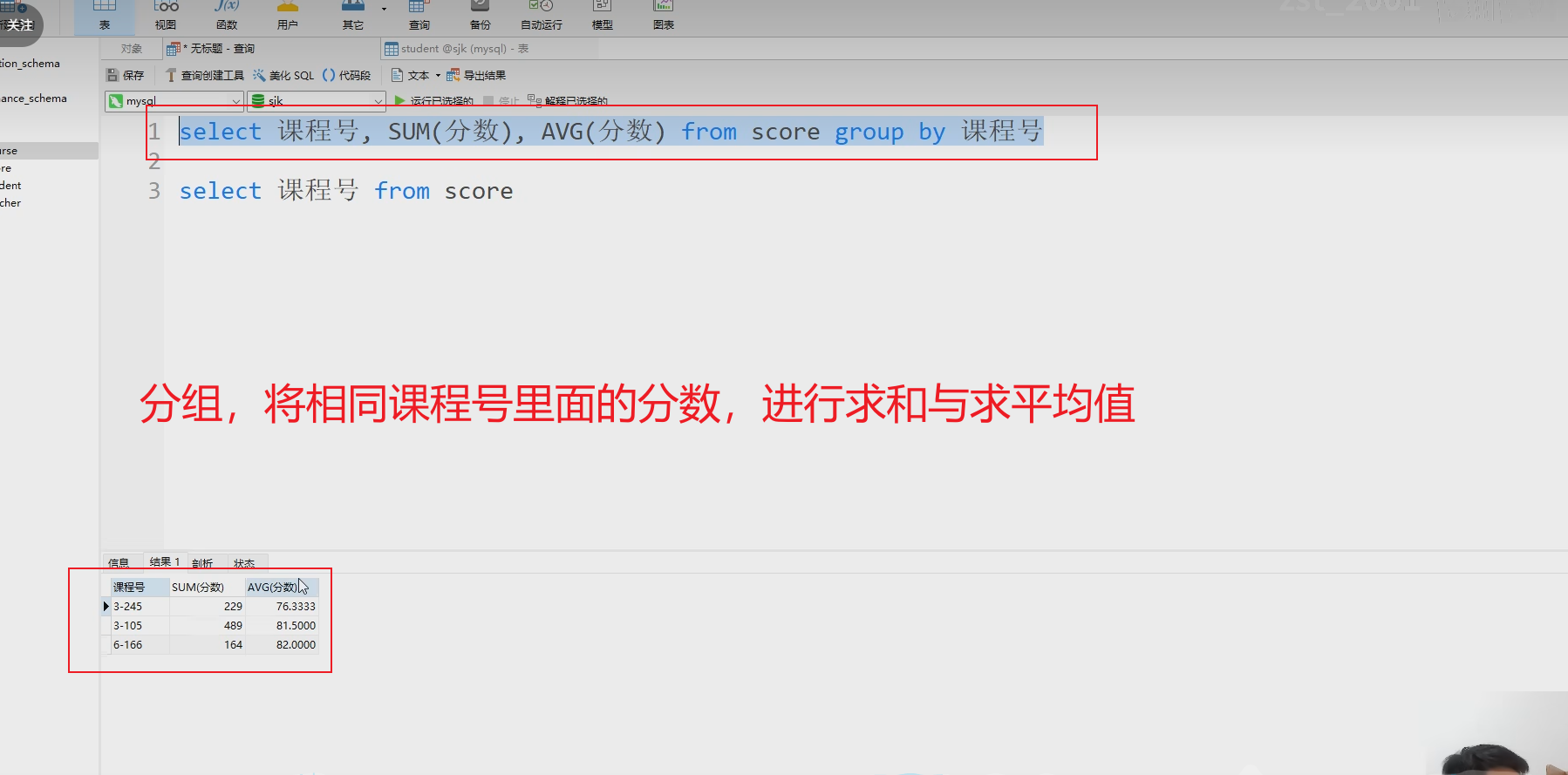

image-20241019155451297

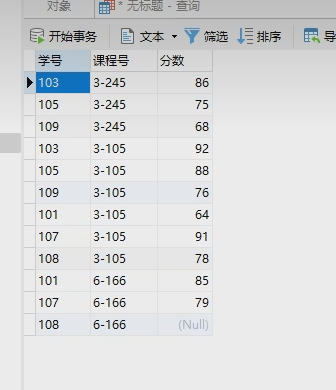

image-20241019160421866

image-20241019160252692

image-20241019160410463

image-20241019160459530

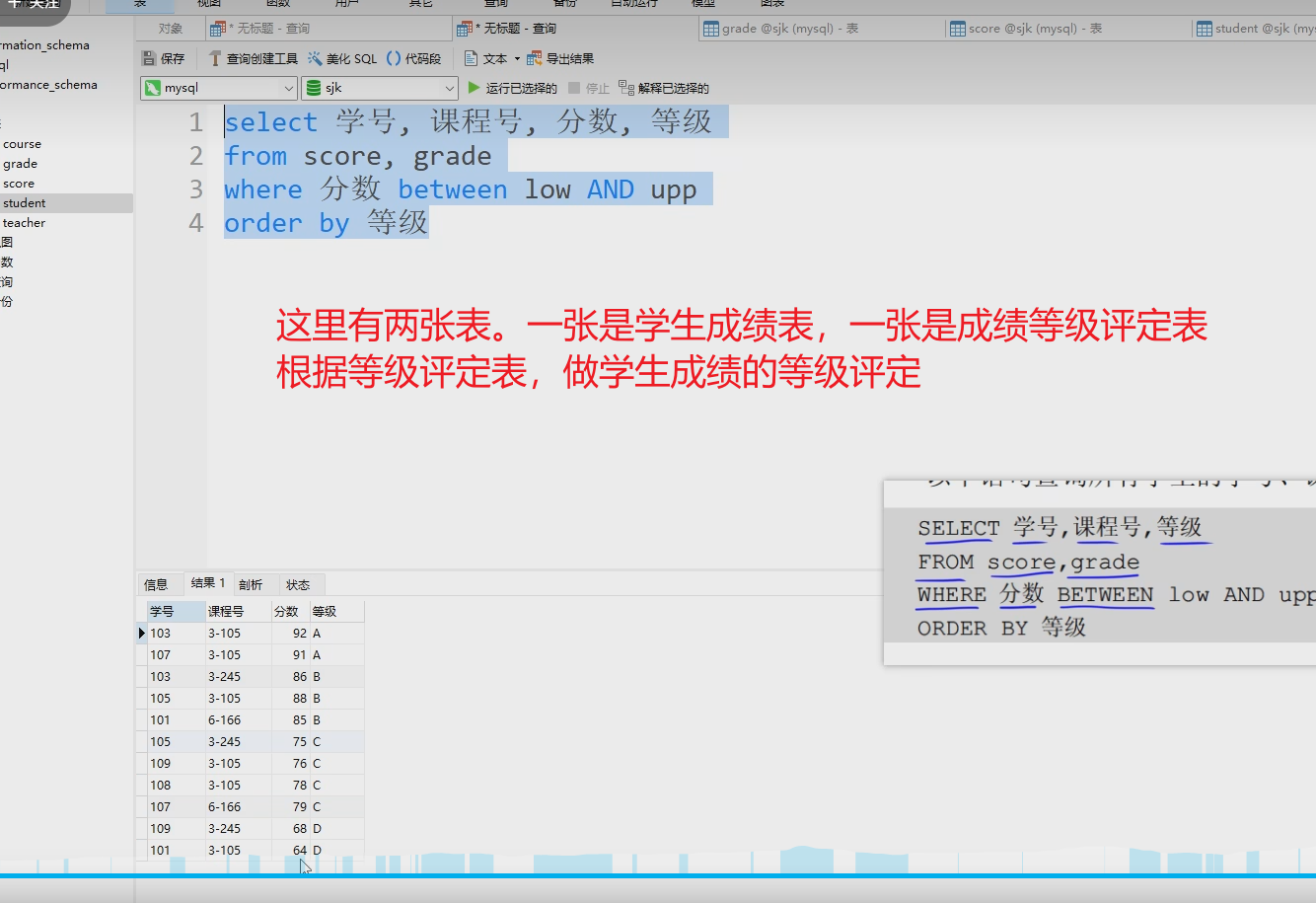

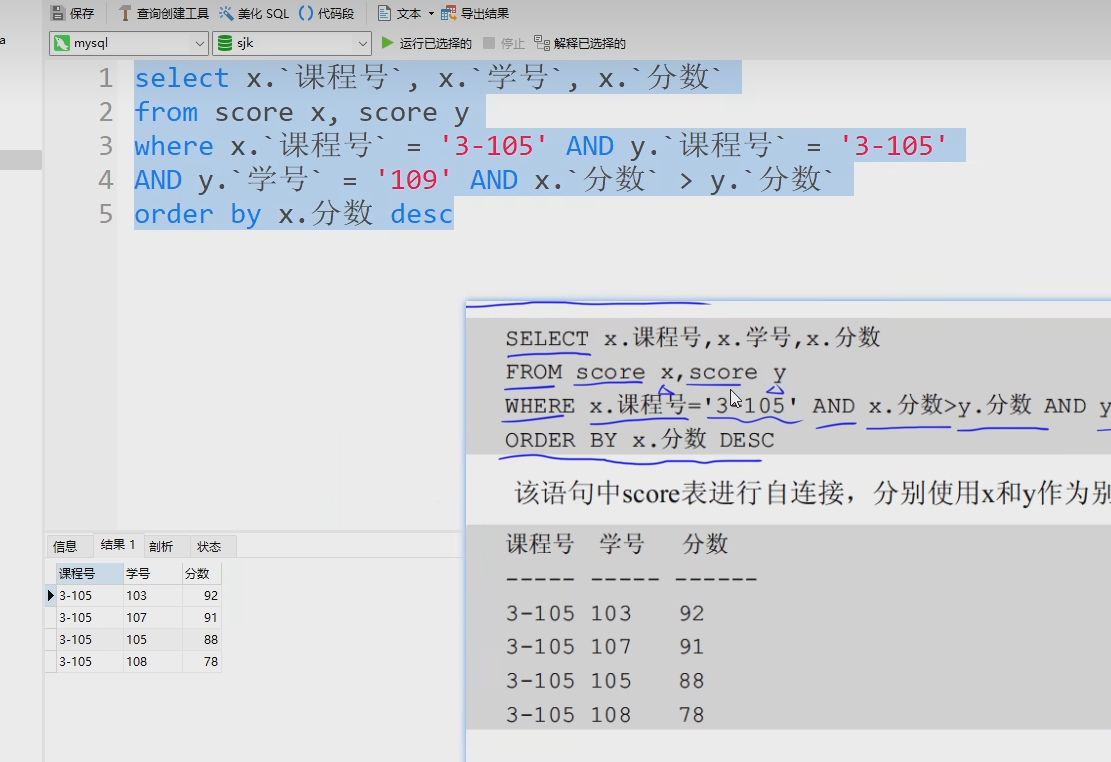

# 22、表的连接查询

select * from student inner join score on student.'学号' = score.'学号'

select student.姓名,score.课程号,socre.分数 from student ,score where student.'学号' = score.'学号'

image-20241019161723922

image-20241019190848154

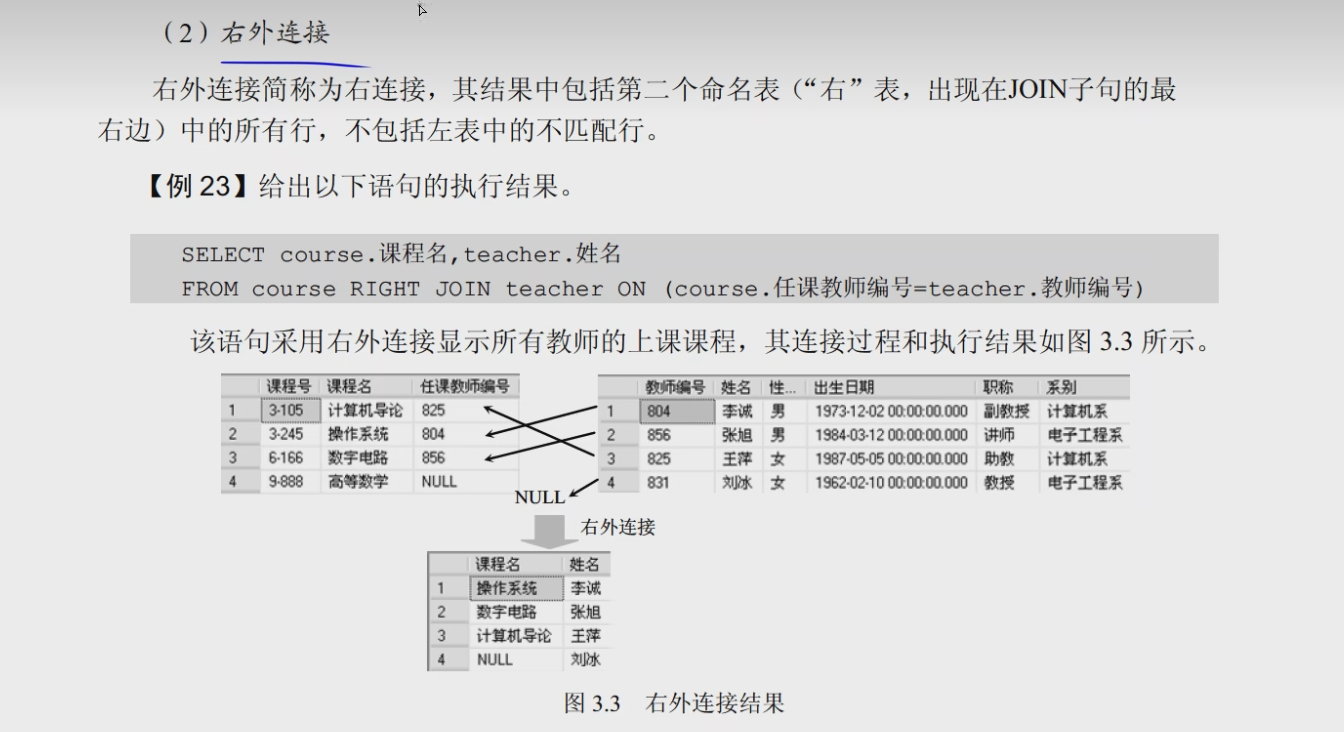

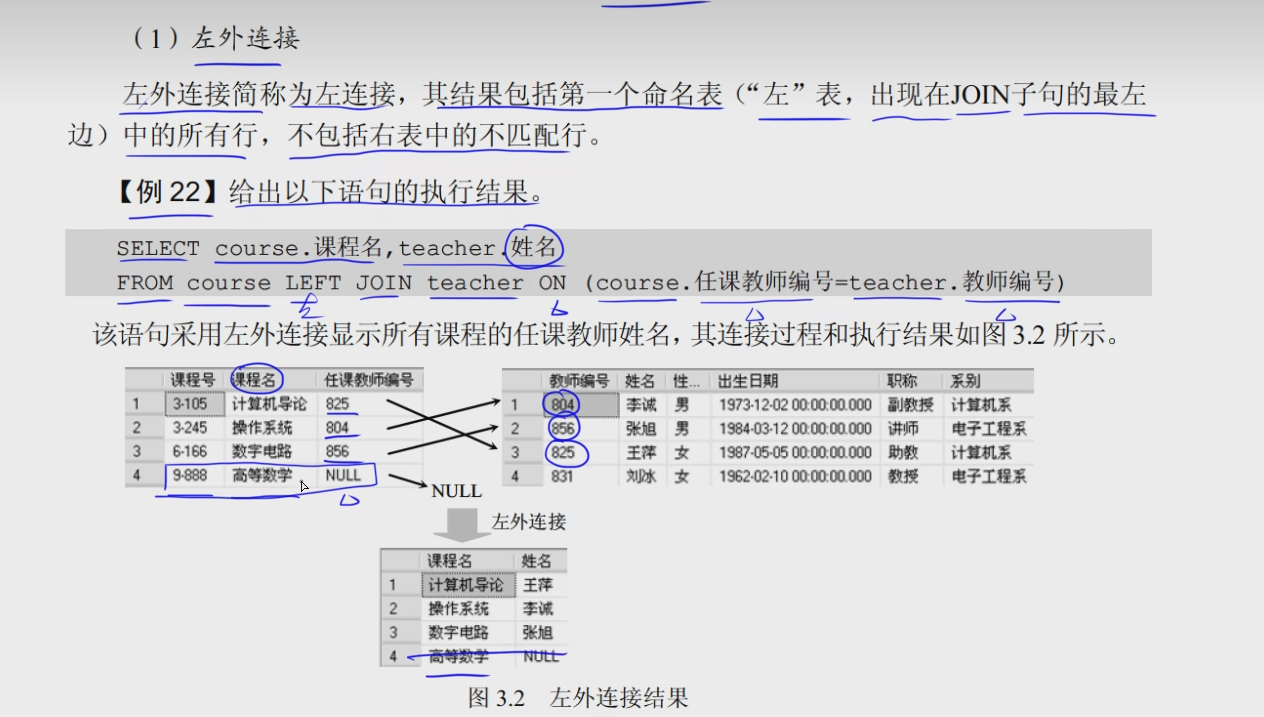

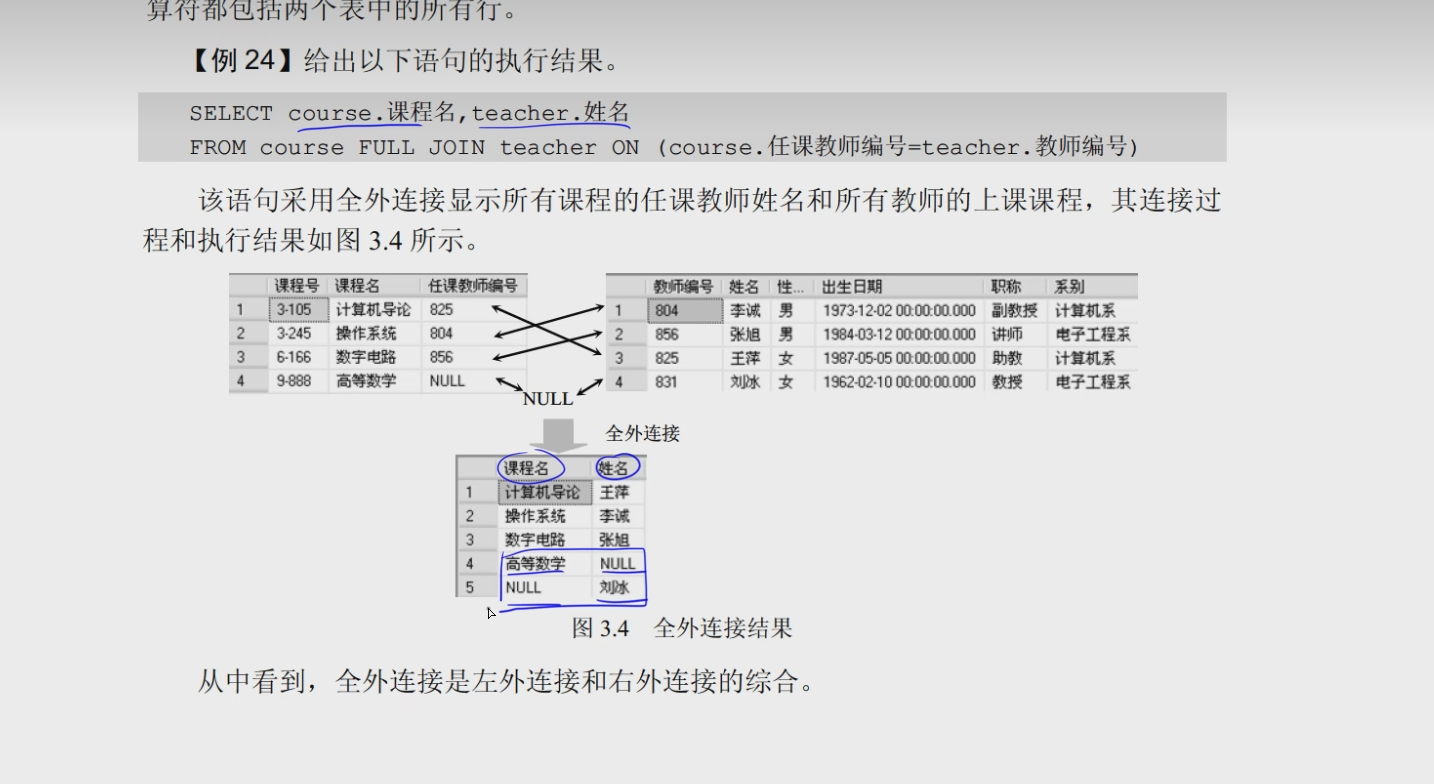

# 23、外连接

image-20241019191053071

image-20241019191109785

image-20241019191205945

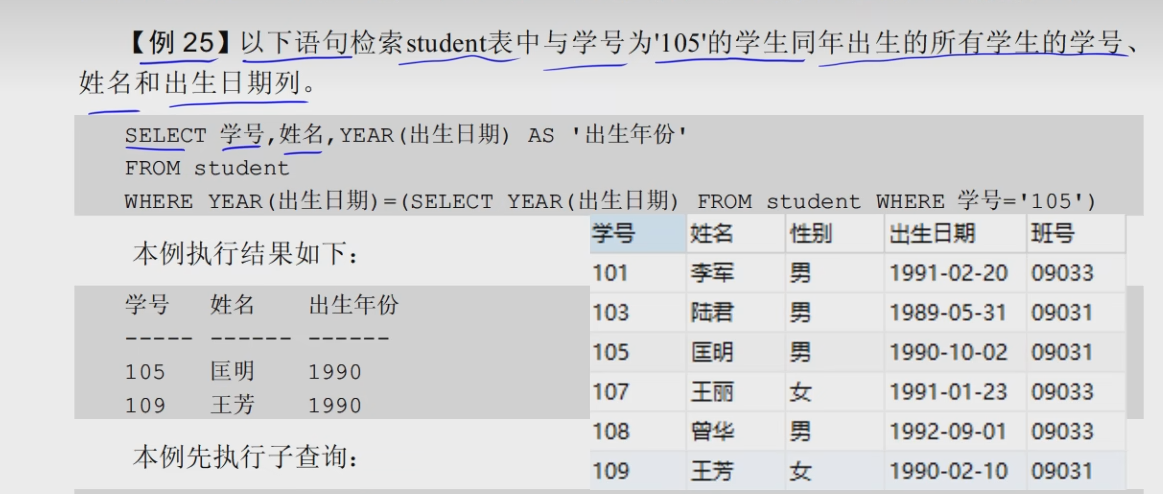

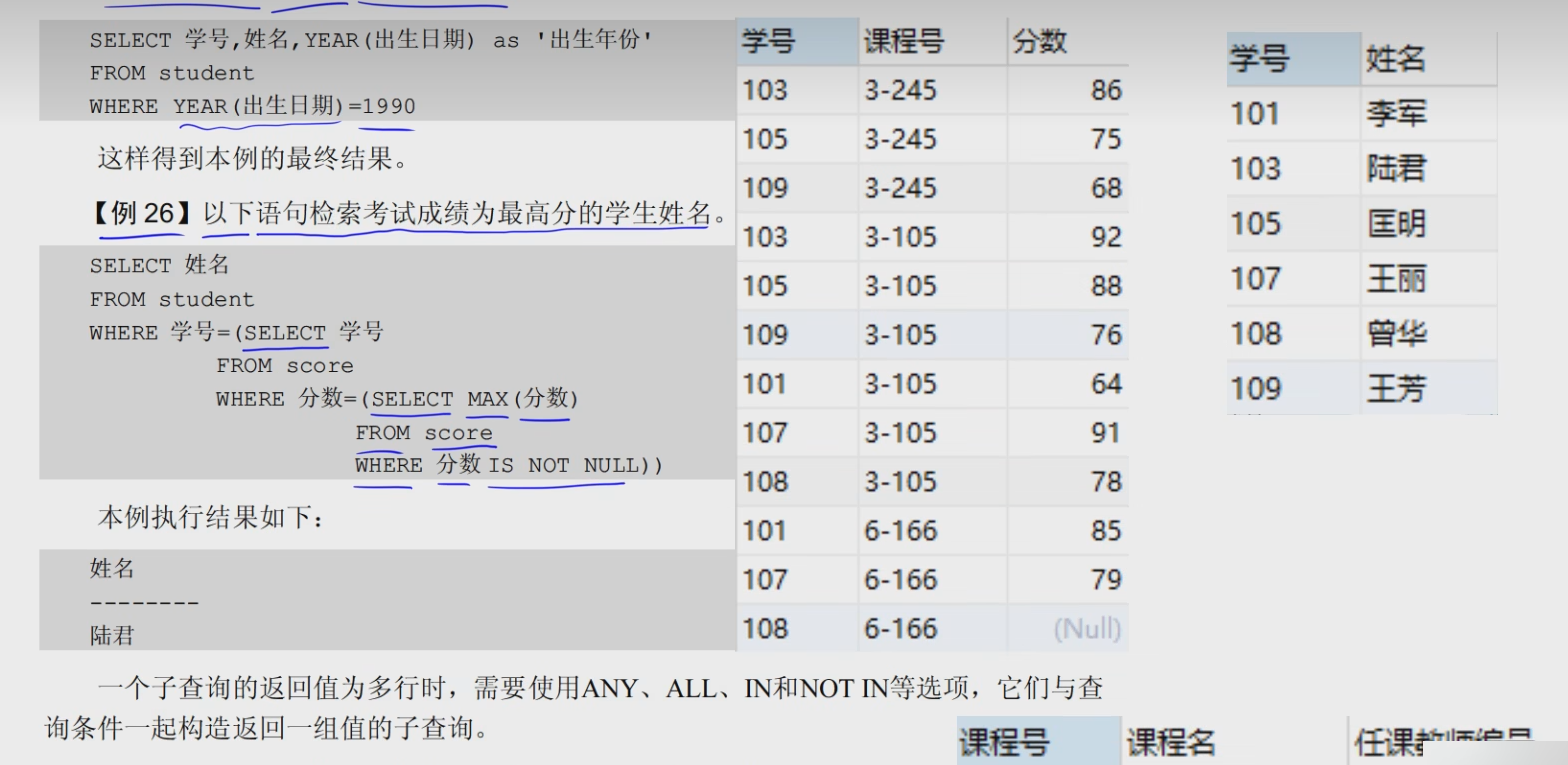

# 24、子查询

image-20241019191251982

image-20241019191323256

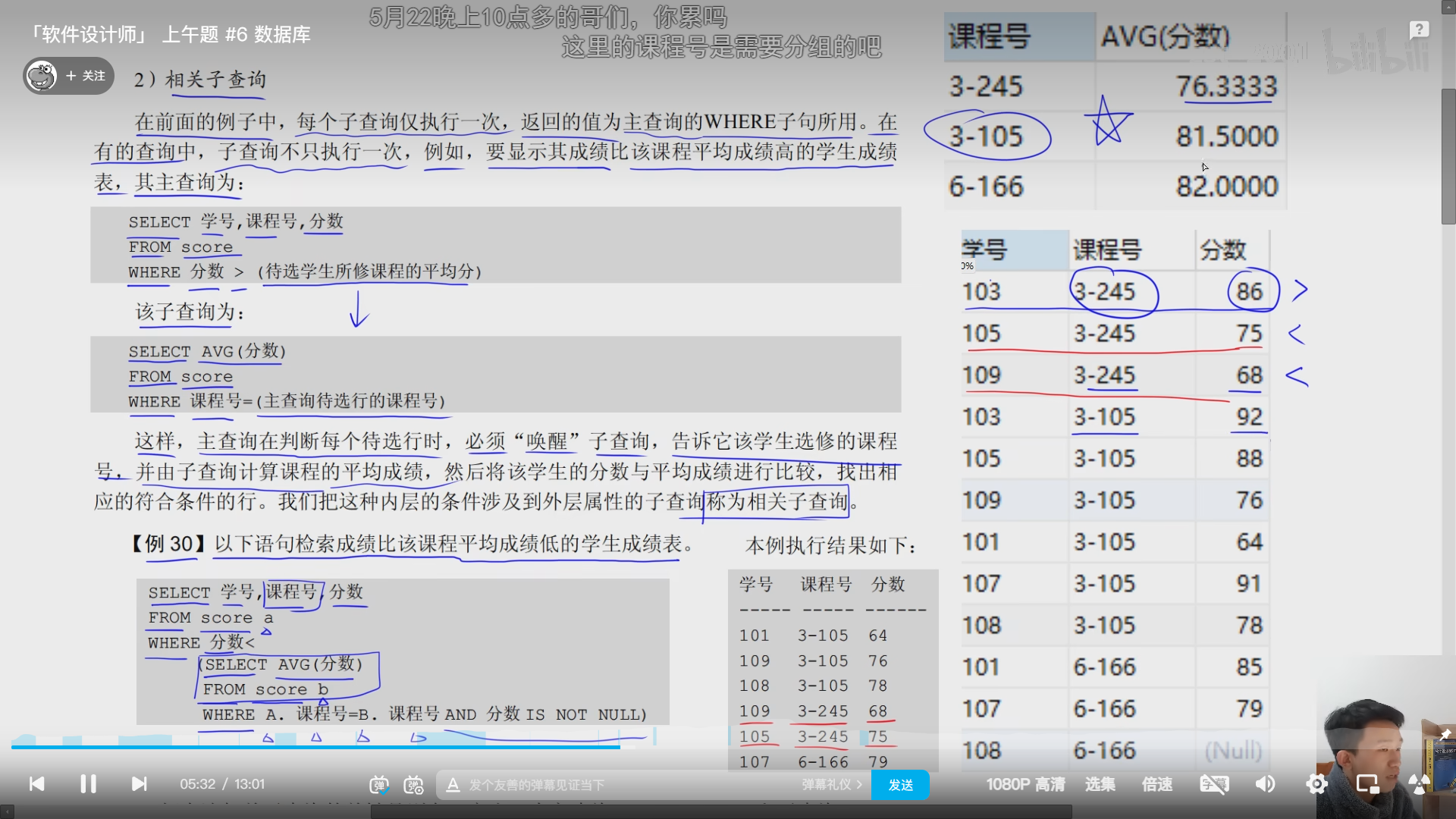

# 25、相关子查询

image-20241019191726223

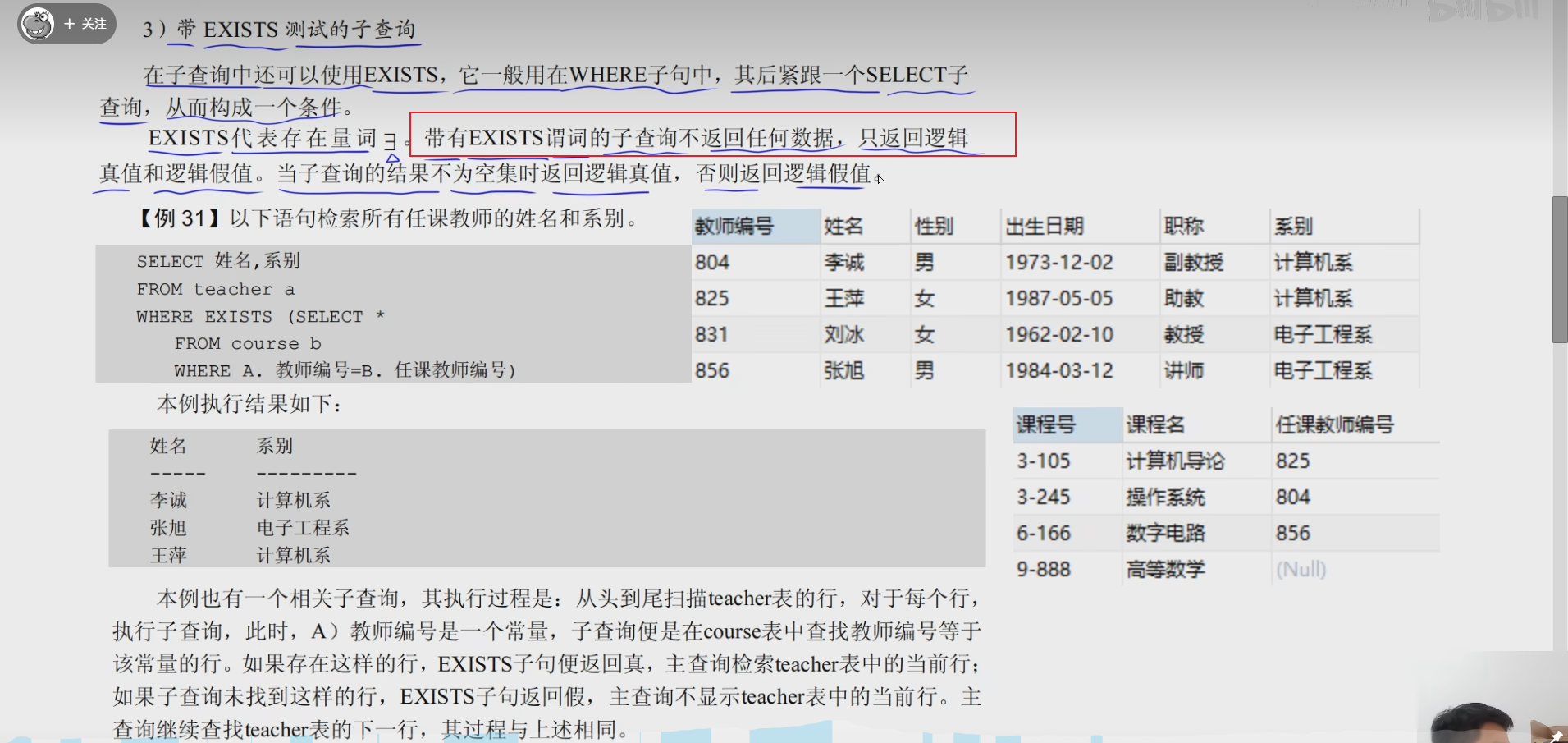

# Exists

image-20241019191842828

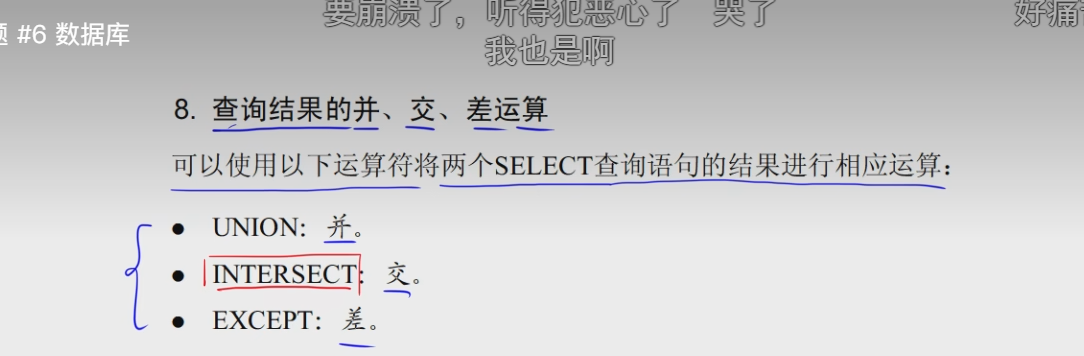

# 26、查询结果的并交差

image-20241019191947583

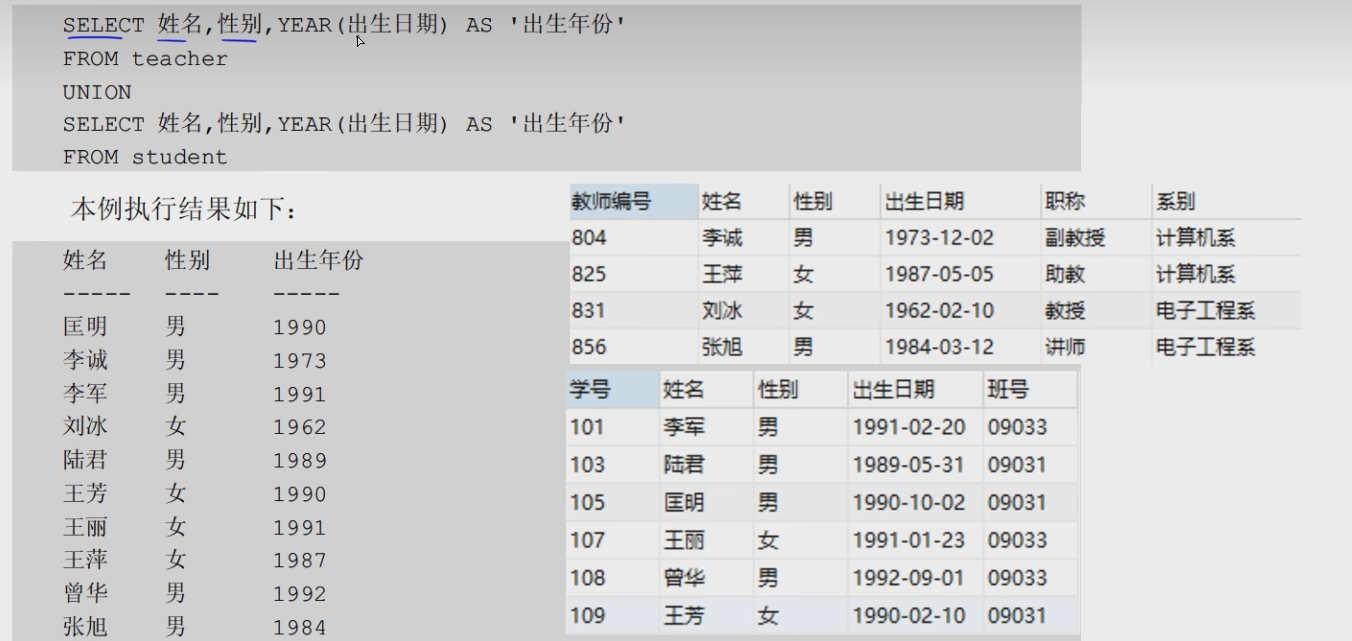

# image-20241019191958914

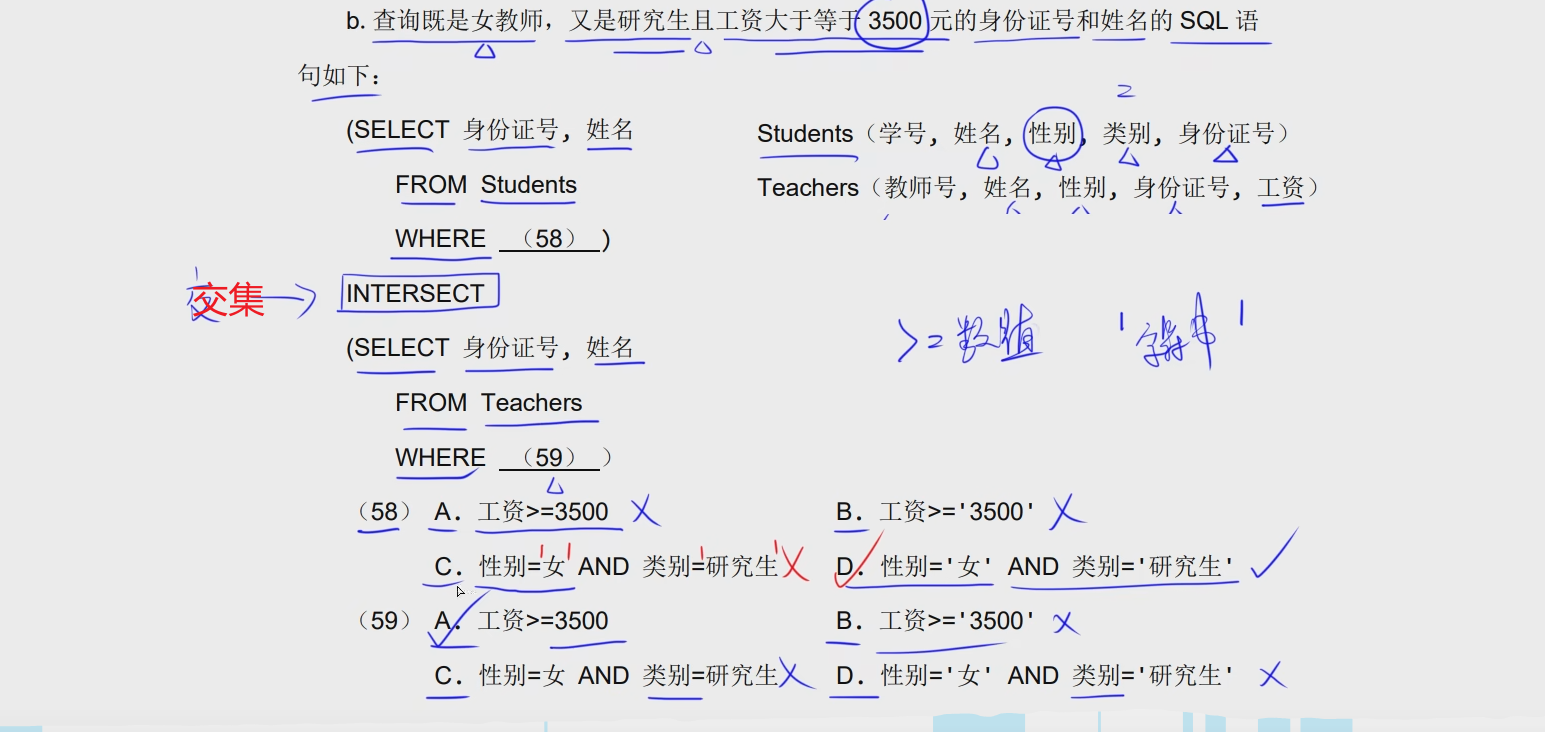

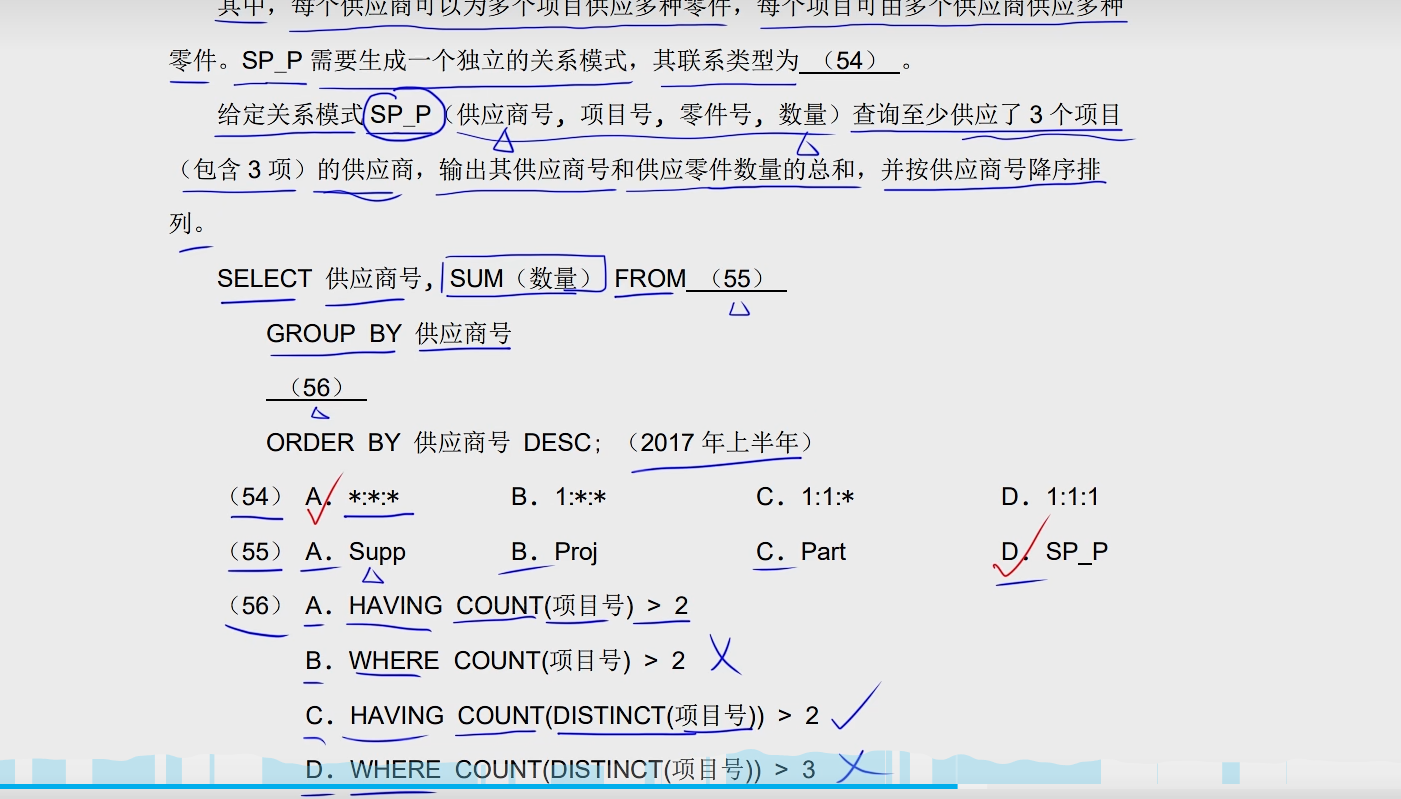

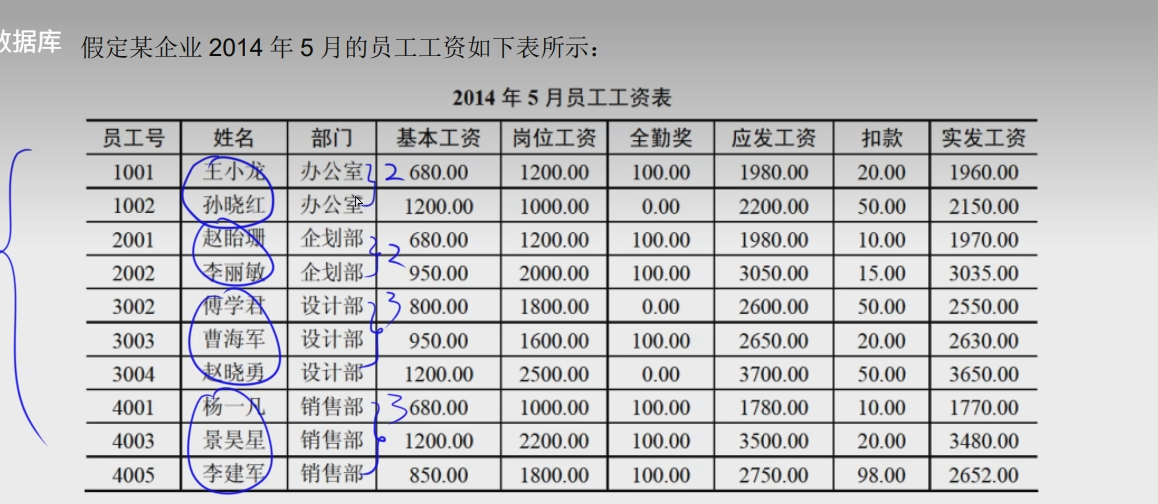

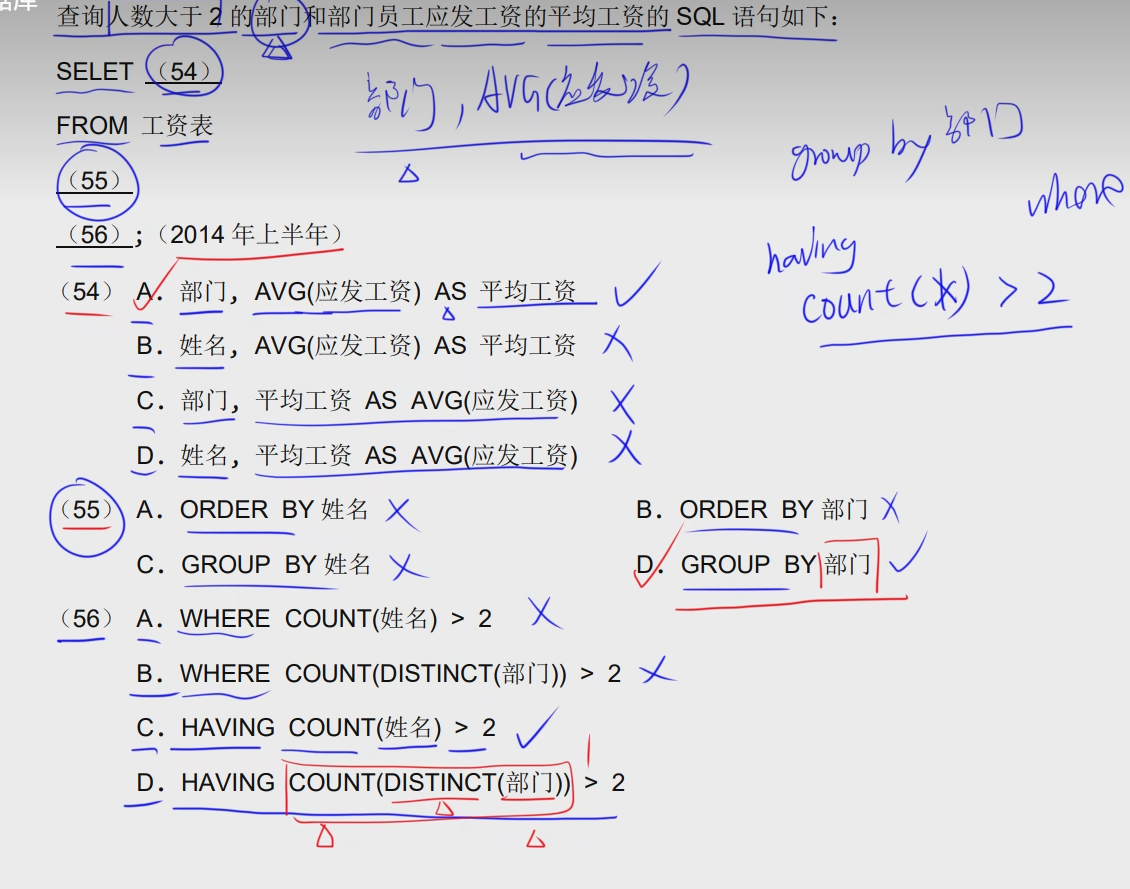

# 27、例题

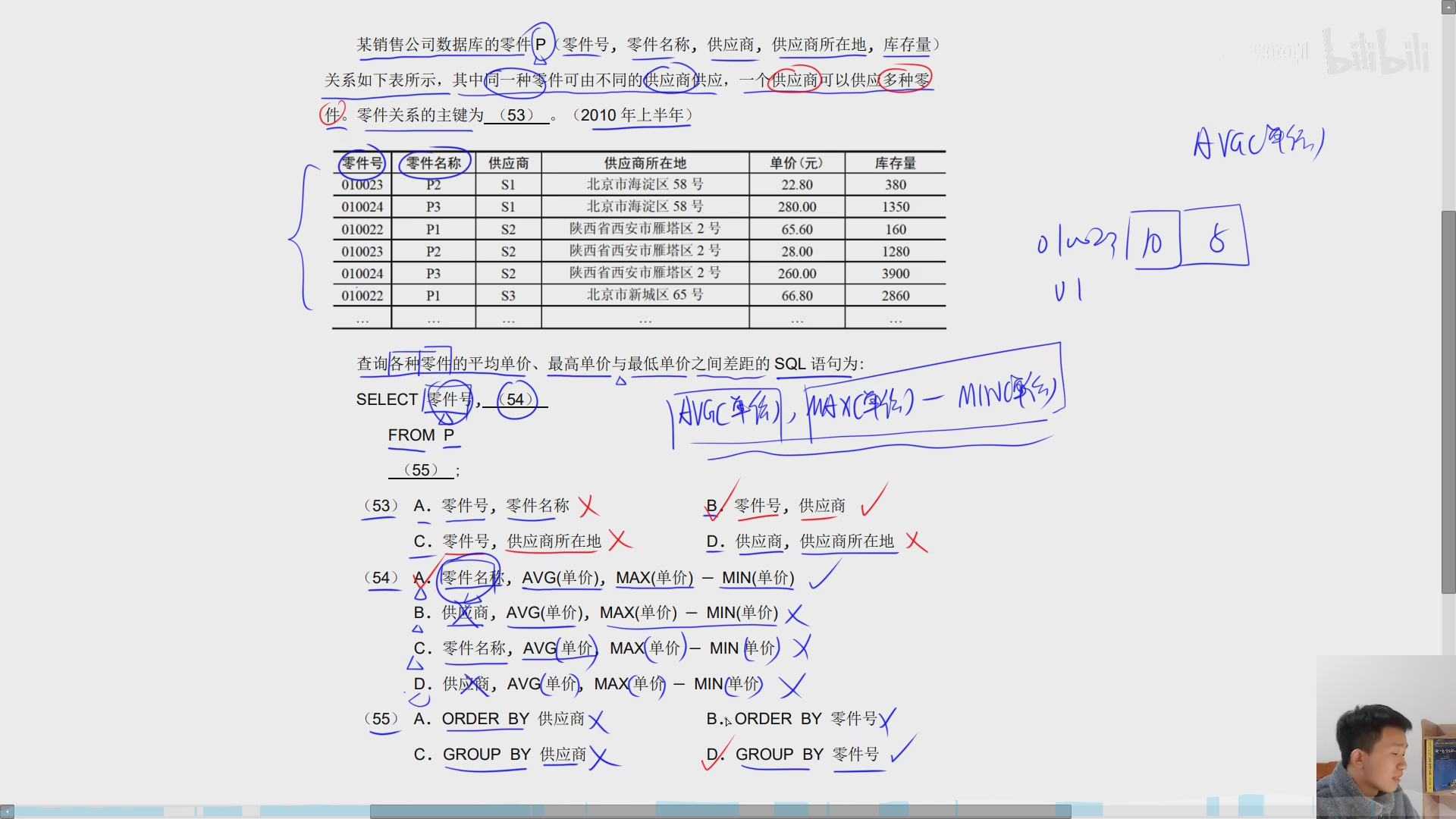

image-20241019193351196

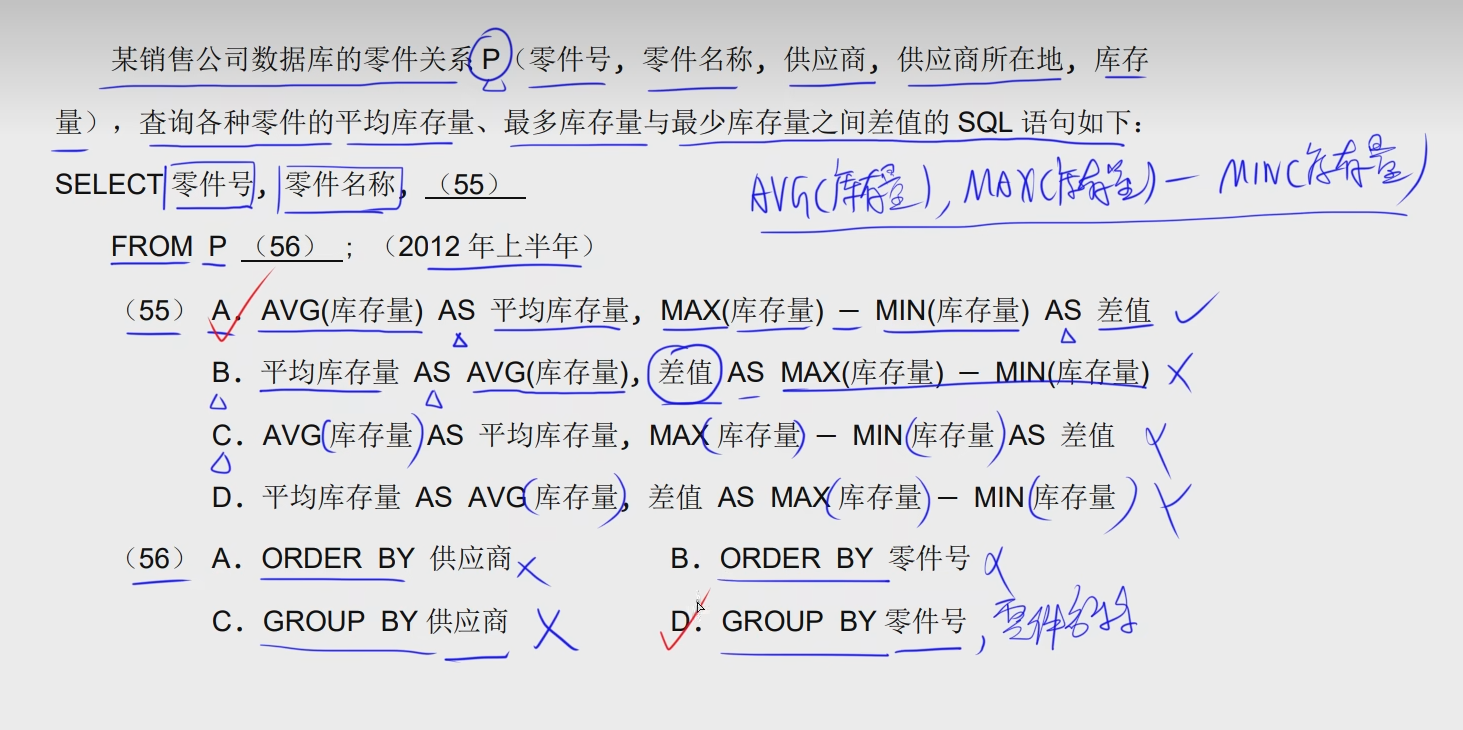

image-20241019193555575

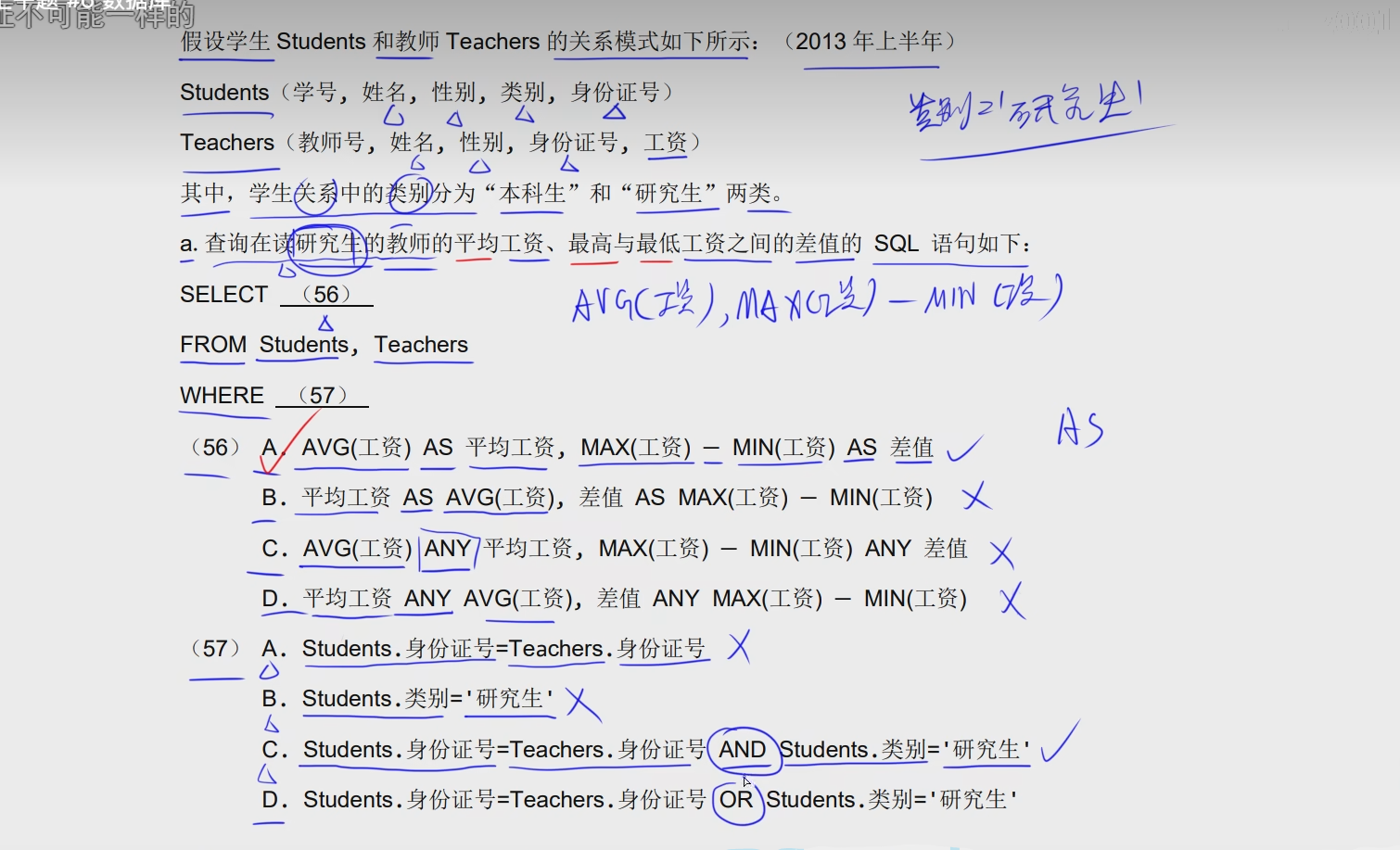

image-20241019193826071

image-20241019194049991

image-20241019194335985

image-20241019194326502


image-20241019195112318

image-20241019195127400

# SQL访问控制(授权)

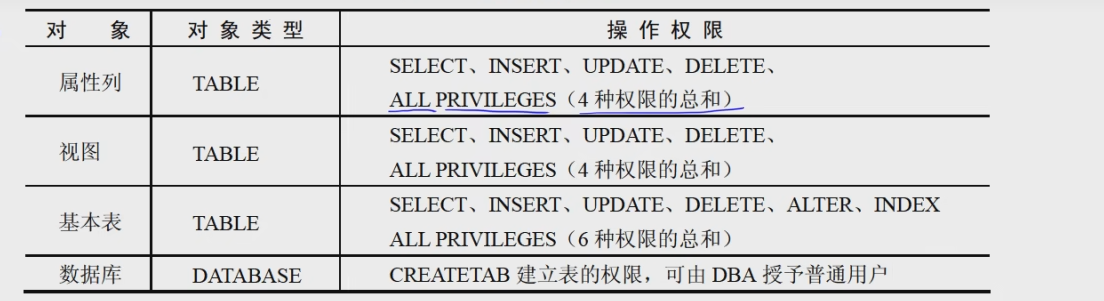

image-20241019195552003

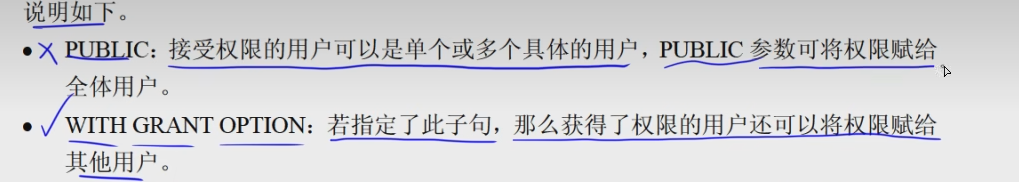

image-20241019195830435

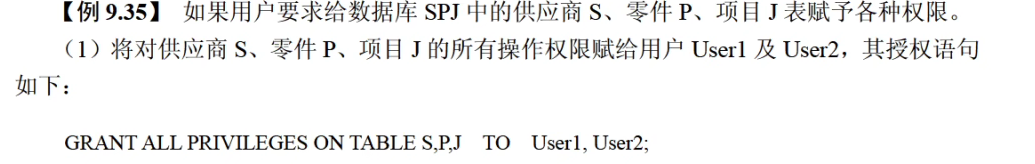

# 1、赋予权限

image-20241019195603668

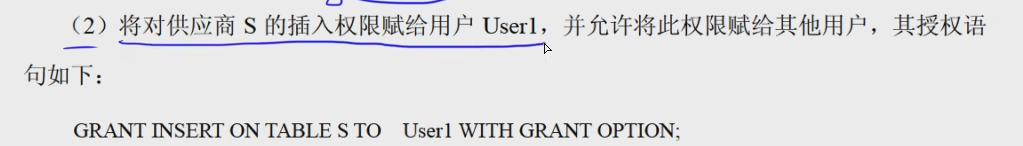

image-20241019195643114

image-20241019195700314

# 2、收回权限

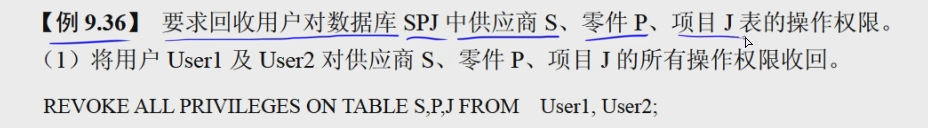

image-20241019195742557

image-20241019195815639

image-20241019195839853

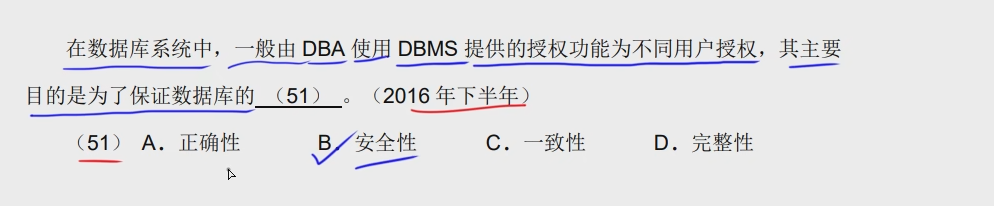

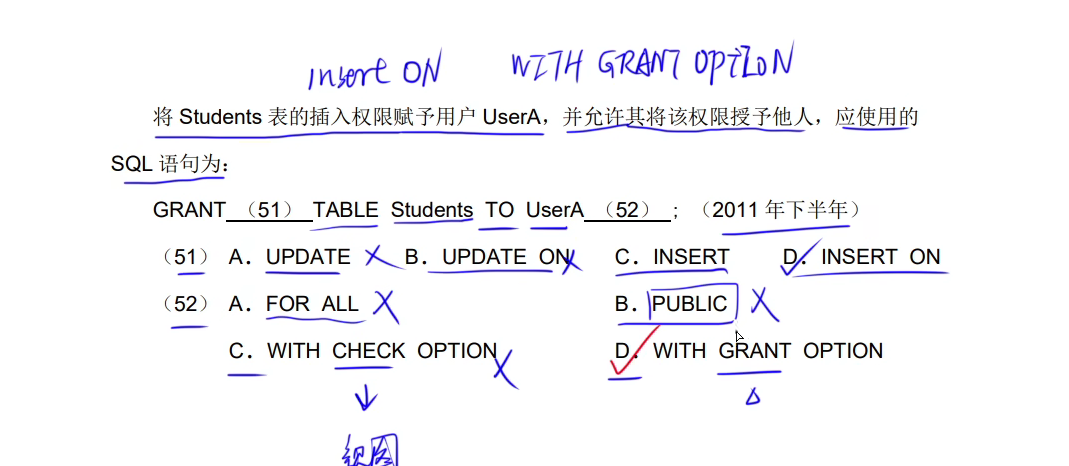

# 28、例题:

image-20241019195941865

image-20241019200007412

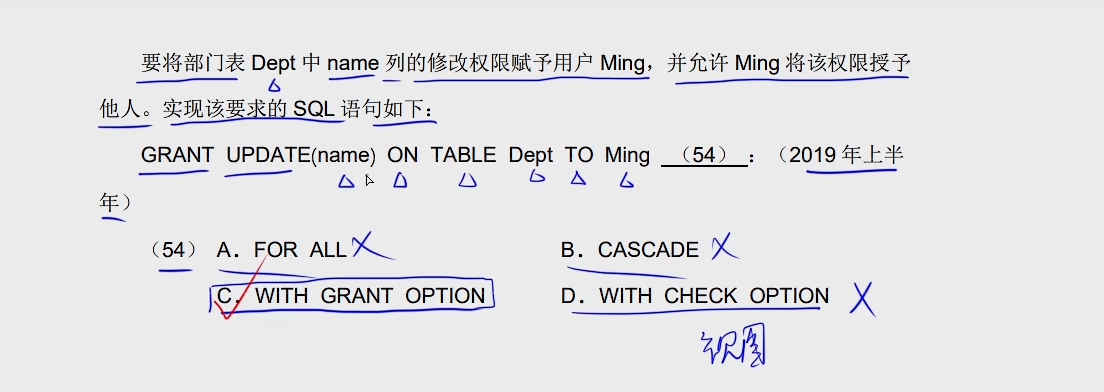

image-20241019200203539

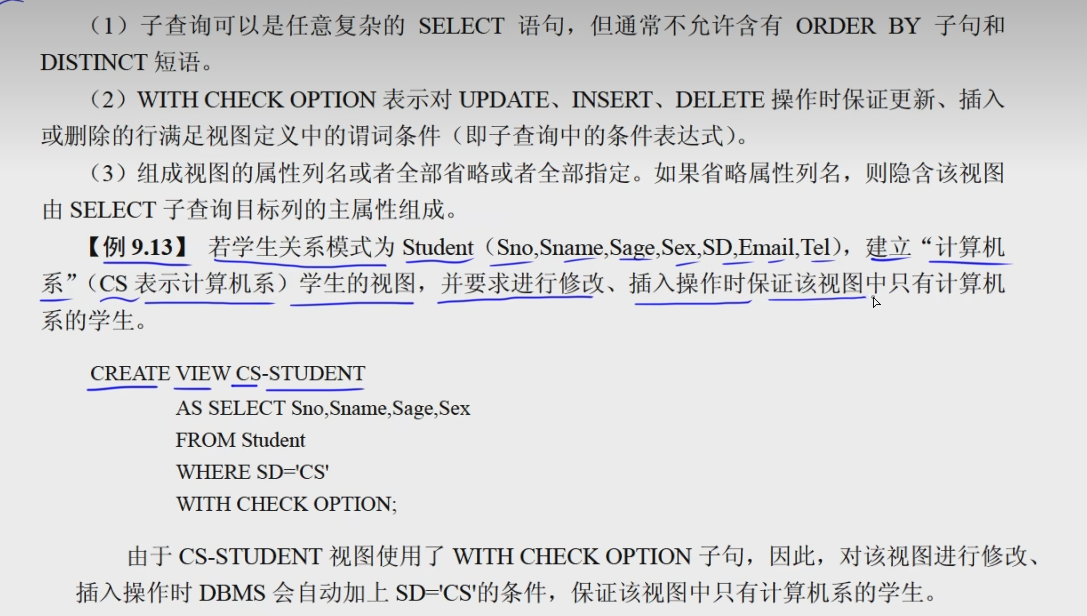

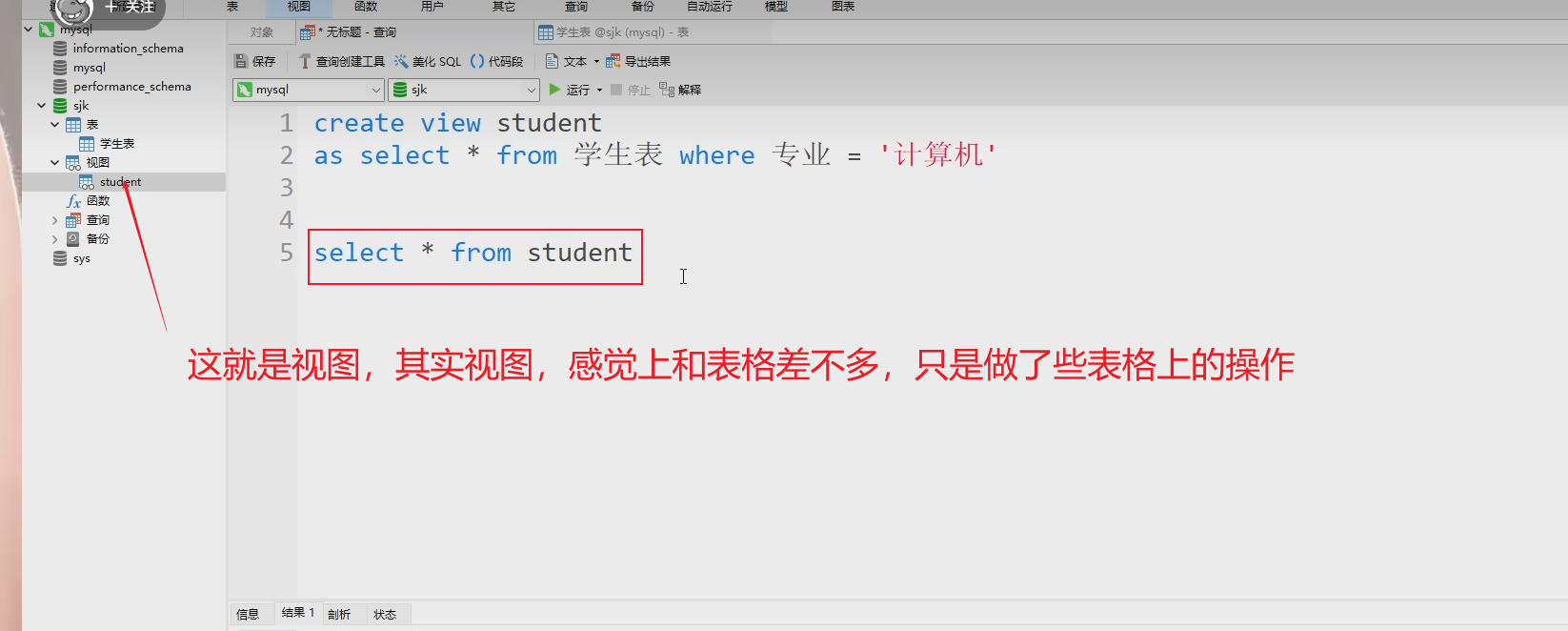

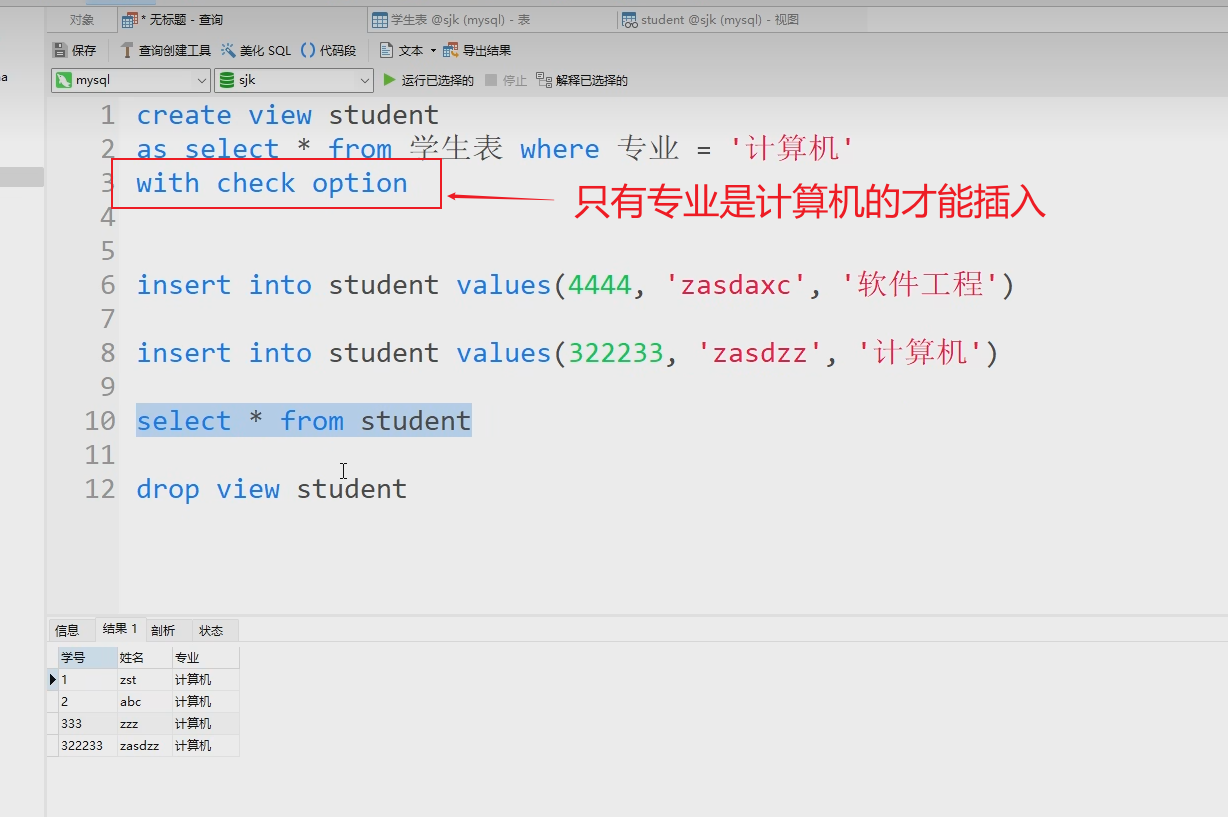

# 29、视图的创建和删除

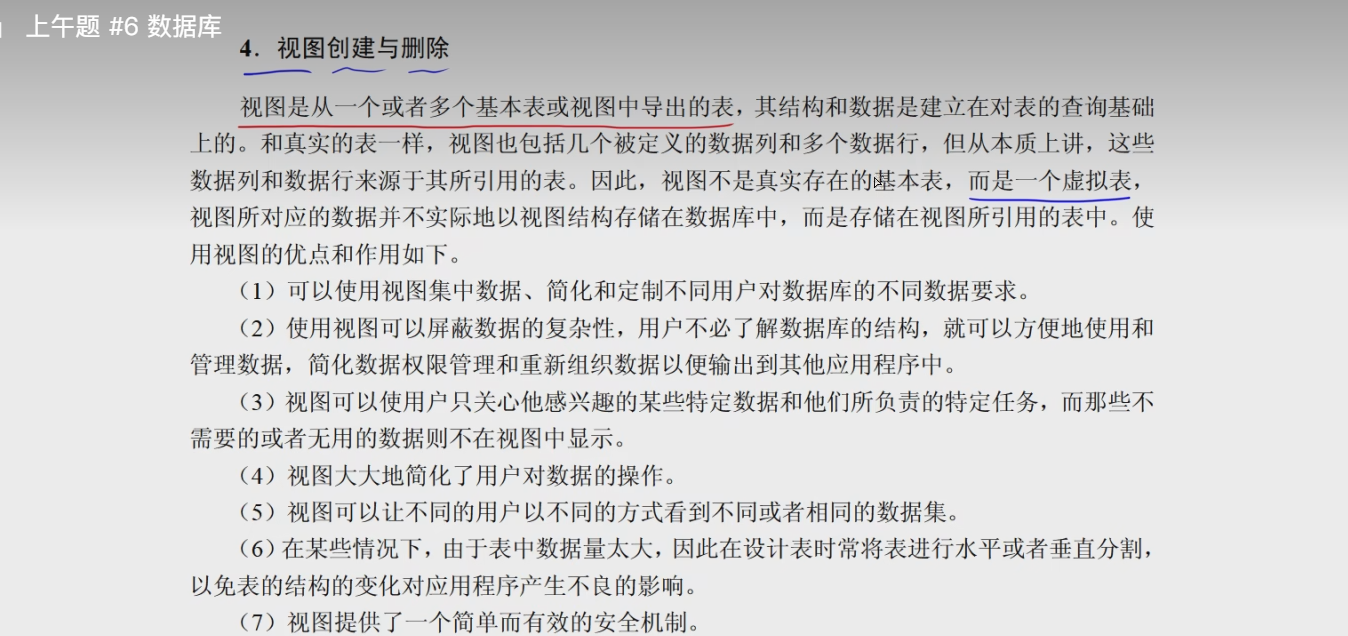

image-20241019200249731

image-20241019200436754

image-20241019200615277

image-20241019201017035

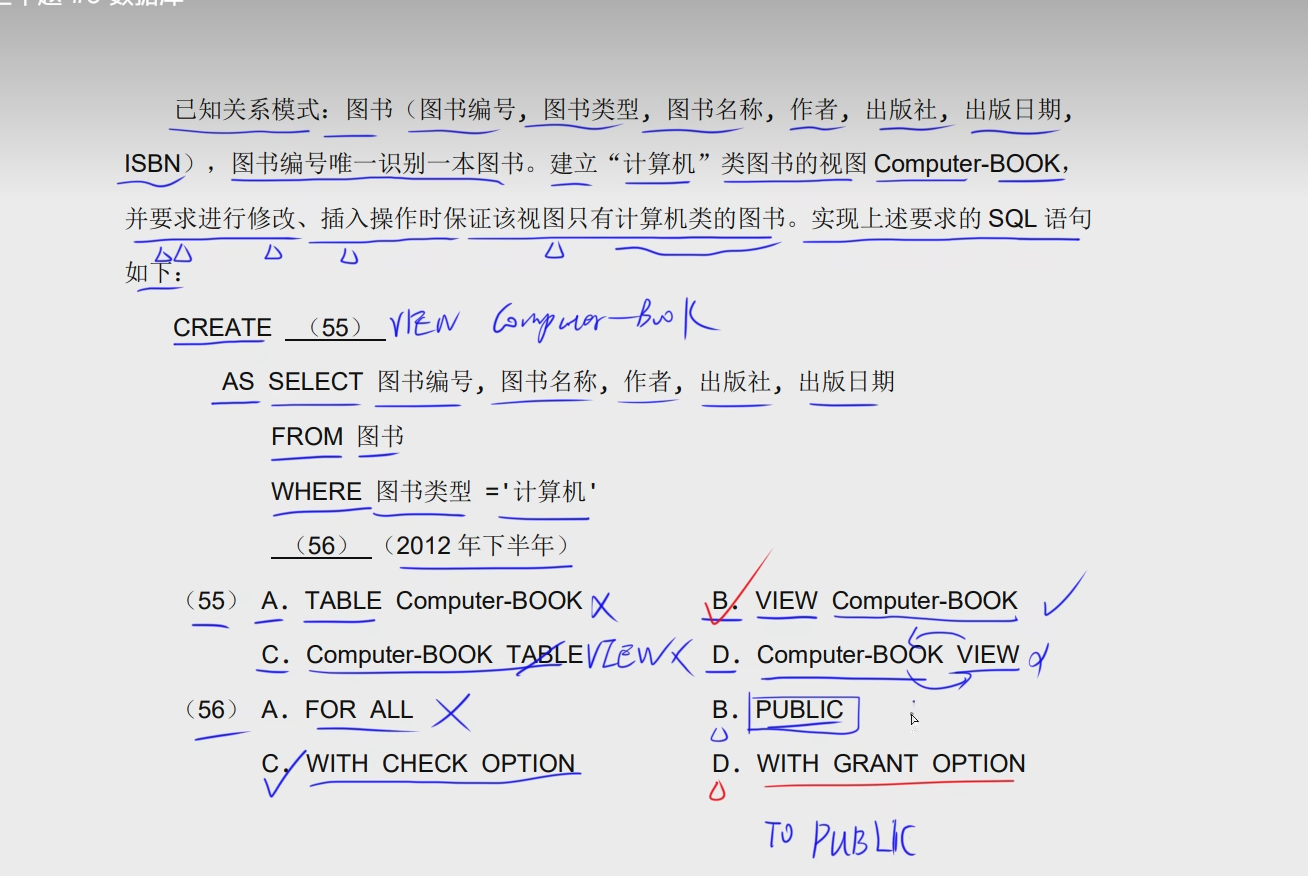

# 30、例题

image-20241019201247229

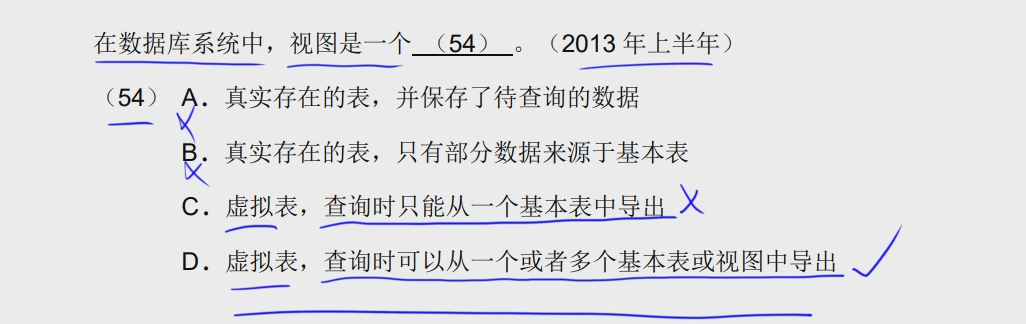

image-20241019201344157
